» » » » Knuth ADA / MT 3 - Universal Facing / Lathe Bore Head

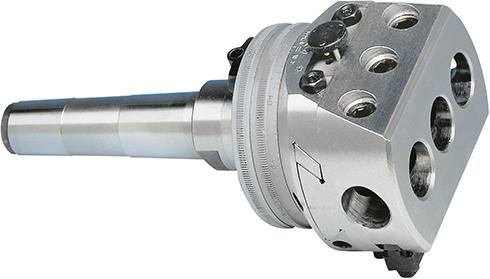

Knuth ADA / MT 3 - Universal Facing / Lathe Bore Head
|
- with self-actuated slide advance and automatic stop activation
- can be used on drill presses, lathes, milling machines, etc.
- automatic advance ensures constant tool feed
- adjustable guides
- adjustable stops
- made of carbon-chromium-molybdenum steel
- all parts are hardened and precision-ground
- guaranteed maximum accuracy
- incl. reducing sleeves 4, 8, 12 mm
Specifications - ADA / MT 3 - Universal Facing / Lathe Bore Head
| external turning diameter |
150 mm |
| facing slide adjustment (max.) |
± 15 mm |
| micro-feed per angle degree |
0,005 mm |
| rapid feed, facing slide |
2 mm/R |
| autmatic facing slide feed |
0,02 / 0,04 / 0,06 / 0,08 / 0,10 / 0,12 mm/R |
| boring bar mount diameter |
18 mm |
Standard equipment - ADA / MT 3 - Universal Facing / Lathe Bore Head
|
|
