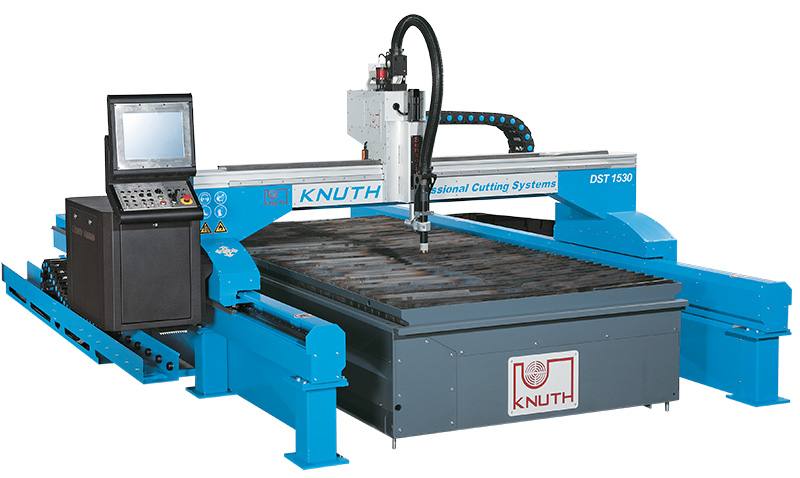

Knuth Plasma Cutting System Plasma-Jet DST 30150 HPR 800 XD
|
| |
|
World-Class Plasma Cutter Systems based on the know-how and technology of the market leader Hypertherm
So können alle Möglichkeiten der modernsten Plasmatechnologie optimal genutzt werden:
- Auswahl der optimalen Hypertherm Plasmaquelle
- Hypertherm MicroEDGE Pro CNC Steuerung & Softwarepaket
- automatische Höhensteuerung Sensor THC
- elektropneumatisch gesteuerter Absaugtisch
- extremely rigid design for maximum cutting precision
- dual-drive bridge
- hochwertige Linearführungen an allen Achsen
- dynamic AC servo drives on all axes with maintenance-free, zero-backlash planetary gears
- auf Dauerbetrieb ausgelegte, schrägverzahnte Zahnstangenantriebe sind verschleißarm und nahezu wartungsfrei
- optimum bed speed even for fine contours and tight radii
- automatic torch height control
- adjustable cutting current
- stand-alone cutter table features rigid steel construction for high load capacity
- stand-alone table eliminates thermal and mechanical influences on the plasma cutter system
- quick-coupling for cutter head changes in seconds
- minimized tooling time ensure maximum cost savings
- nutzen Sie die bereits in der Steuerung vorhandenen Schneidparameter für den optimalen Schnitt
- Ausrüstung mit Autogenschneidkopf, Rohrschneideinrichtung und weiteren Optionen möglich
Specifications - Plasma-Jet DST 30150 HPR 800 XD - Plasma Cutting System
| cutting station |
|
| cutting range |
3150x15400 mm |
| rapid feed |
20000 mm/min |
| table load capacity |
1000 kg/m² |
| plasma source |
|
| max. Schnittkapazität unlegierter Stahl (Kantenstart) |
80 mm |
| Produktionskapazität unlegierter Stahl (Lochstechen) |
50 mm |
| cut angle |
Klasse (class) 2 - 5 nach (to) ISO 9013 |
| Leistung Plasmaquelle |
(2x) 49 kW |
| cutting current |
30 - 800 A |
| process gases |
02/Luft, 02/02, Ar/Luft, H35/N2, N2/N2, H35-N2/N2, F5/N2 |
| Abmessungen Stromquelle |
(2x) 1180 x 880 x 1260 mm |
| Abmessungen Kühler |
1700x876x1372 mm |
| Gewicht Stromquelle |
(2x) 851 kg |
| Gewicht Kühler |
449 kg |
| accuracies |
|
| positioning accuracies |
± 0,02 mm / 0,0008" |
| repeatabilities |
± 0,02 mm / 0,0008" |
| measures and weights |
|
| overall dimensions |
5000x17000 mm |
| Gewicht (ohne Plasmaquelle und Absaugung) |
13850 kg |
Control - Plasma-Jet DST 30150 HPR 800 XD - Plasma Cutting System
Hypertherm MicroEDGE Pro
|
Increased quality and productivity for reduced cost using an advanced control technology!
- HyDefinition cut quality
- Automatic kerf-width compensation according to material thickness, current and speed
- Automatically adjusted plunge-cut and cutting height ensure maximum service life of wear parts
High user comfort
- Offline software automatically sets up the cutting process parameter
- Easy configuration of orders with CutPro Wizard
- User prompts to enter board type and wear part number
- Tips for cutting optimization
- Operator manual for CNC, torch height control and plasma source on the operating display
- Diagnostics via Internet
- Offline diagnostics via form requisition/CNC software for the parts program
Standard Equipment
- Operating system: Windows
- Industrial PC with 15“ touch-screen monitor
- Graphical user interface
- USB port
|
|
Standard equipment - Plasma-Jet DST 30150 HPR 800 XD - Plasma Cutting System
Hypertherm CNC control, Hypertherm plasma source, höhengesteuerte Z-Achse Sensor THC, absaugfähiger Arbeitstisch mit elektropneumatischer Klappensteuerung, Ministarterset für Verschleißteile, operating manual and programming instructions
Accessories / Tools - Plasma-Jet DST 30150 HPR 800 XD - Plasma Cutting System
| Automatische Gaskonsole |
| Autogenschneidkopf |
| Arbeitstischerweiterung |
| Filter-Absauganlage 4000 m3/h |
| Filter-Absauganlage 5000 m3/h |
| Filter-Absauganlage 6000 m3/h |
| Rohrschneideinrichtung für 3 m Rohrlänge |
| Softwareoption Turbonest |
| Softwareoption Pronest |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
