» » » » Knuth Workshop Press KWP 80 M
Knuth Workshop Press KWP 80 M
Knuth KWP 80 M

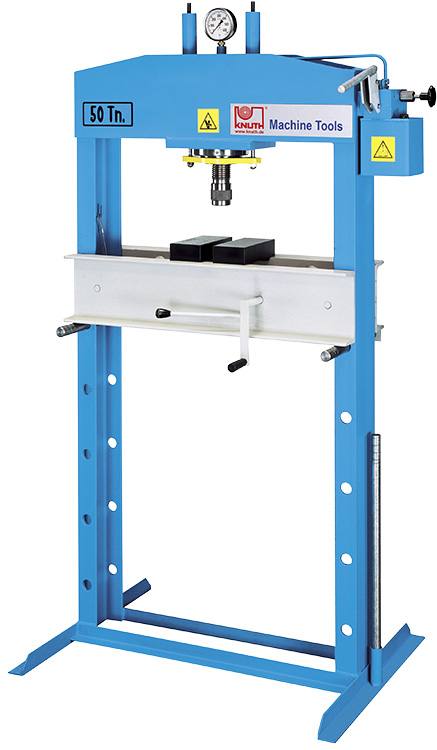

KWP 50 M shown |
|
Ideal for craft shops, schools and training facilities
For any repair and installation work, e.g.:
- removal and installation of press-fit bearings, bolts and bushings
- straightening beams, shafts, axles and sections
- pressing and crimping
- load tests and weld sample testing
- tool setup
- material testing
- rigid weldment design
- reliable, highly accurate hydraulic system, Made in Europe
- pump lever for manual pressing build up
- piston and return-spring reset
- rigid base table with selectable heights, height adjusted by hand wheel
- ram height also adjustable via screw
- with guided cylinders
|
Specifications - KWP 80 M - Workshop Press
| working area |
|
| pressure force |
80 t |
| pressure max. |
500 bar |
| stroke length, max. |
120 mm |
| tapping spindle adjustment |
100 mm |
| manual pump |
1 |
| circular guides |
2 |
| measures and weights |
|
| weight |
330 kg |
|
Standard equipment - KWP 80 M - Workshop Press
screw, pressure gauge, hand wheel adjustable work table, 2 base plates, operator manual
|
| |
| |
