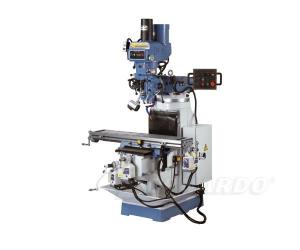

Bernardo MFM 230 multi-purpose milling machine


10.000,00 EURplus 19 % tax, excl. Shipping costs



Product No.:
02-1290
EAN:
9009468001186
Shippingtime:
Weight per unit:
1000 kg
Bernardo MFM 230 Mehrzweckfräsmaschine

Bernardo MFM 230 multi-purpose milling machine.


Due to the multiplicity adjustable millhead of the robust and stable milling machine MFM 230 are these models optimal suited for light and medium heavy milling works.


Table size 1245 x 230 mm
Spindle taper ISO 40
Spindle speed stepless 50 - 3335 rpm
Spindle feed (3) 0,04 / 0,08 / 0,20 mm/rev.
Spindle stroke 125 mm
Travel longitudinal (x) 735 mm
Travel cross (y) 340 mm

Travel vertical (z)

360 mm
Distance spindle to column 170 - 530 mm
Mill head pivoting range -90° to +90°
Mill head tilting range -45° to +45°
Distance spindle / table 20 - 380 mm
T-slot size 16 mm
Motor power 2,25 kW
Machine dimension (W x D x H) 1500 x 1220 x 2200 mm
Weight approx. 1000 kg
  • Mill head turn-, pivot- and tiltable
  • Hardened and grinded guideways
  • 3 automatical spindle feeds
  • Stepless feed of the x- and y-axis
  • Table surface hardened and grinded
  • Spindle with micrometer depth gauge
  • Integrated coolant tank in the base
  • Vertical millhead with stepless drive
  • Pneumatic tool clamping included at standard accessories

Standard accessories:

  • Drawbar M16
  • Coolant system
  • Halogen light
  • Power feed of x-, y- and z-axis
  • Central lubrication
  • Pneumatic tool clamping
  • Coolant tray
