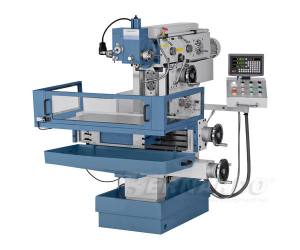

Bernardo WFM 800 universal milling machine
|
|
The WFM 800 conventional universal tool milling machine is designed for processing workpieces of up to 300kg. The solid, sturdy grey cast-iron construction and rigidity makes this group of machines meet all the requirements for top accuracy. Main application areas include tool and mould construction as well as modelmaking and prototyping.
Table size
|
800 x 400 mm
|
Vertical clamping area
|
950 x 250 mm
|
Travel longitudinal (x)
|
500 mm
|
Travel cross (y)
|
350 mm
|
Travel vertical (z)
|
400 mm
|
Table load
|
300 kg
|
Vertical mill head
|
|
Spindle speeds
|
(18) 40 - 2000 rpm
|
Spindle taper
|
ISO 40
|
Spindle stroke
|
60 mm
|
Spindle feed
|
0,03 / 0,06 / 0,12 mm/rev.
|
Distance spindle to column max.
|
520 mm
|
Distance spindle / table
|
5 - 405 mm
|
Spindle head tilting range
|
-90° to +90°
|
Horizontal mill head
|
|
Spindle speeds
|
(18) 40 - 2000 rpm
|
Spindle taper
|
ISO 40
|
Distance spindle / table
|
35 - 435 mm
|
Feeding speed
|
|
x-axis
|
(18) 10 - 500 mm/min
|
y-axis
|
(18) 10 - 500 mm/min
|
z-axis
|
(18) 10 - 500 mm/min
|
Rapid feed (x / y / z)
|
1200 mm/min
|
T-slot (Quantity / Width / Distance)
|
8 / 14 mm / 45 mm
|
T-slot vertical table (Quantity / Width / Ditance)
|
5 / 14 mm / 45 mm
|
Feeding motor
|
1,5 kW
|
Main motor
|
3,0 kW
|
Machine dimension (W x D x H)
|
1460 x 2080 x 1720 mm
|
Weight approx.
|
2200kg
|
- Hand wheel guarantees simple and precise feed settings
- Complete with manual, automatic and rapid feed in all three axis
- Central lubrication in guideways comes standard
- Clear design of speed and feed controls
- Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces
- Optimal adjustments of spindle speed and feed allow for economic machining of various materials
- Solid grey cast-iron machine base guarantees precision and minimizes vibrations
- Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
- Hardened and polished guideways guarantee top accuracy
- Tiltable vertical milling head with spindle adjustment and three automatic drill feeds
Standard accessories:
- Drawbar M16
- Halogen light
- Coolant device
- Power feed for x-, y- and z-axis
- 3-axis digital readout
- Horizontal counter bearing
- Long milling arbor ISO 40/22 mm
- Long milling arbor ISO 40/27 mm
- Taper shell end mill holder ISO 40 / 22 mm, ISO 40 / 27 mm
- Adapter ISO 40 / MT 1, ISO 40 / MT 2, ISO 40 / MT 3
- Collet chuck with collets 4 - 16 mm
- Drill chuck 0 - 6 mm, 1 - 13 mm
- Table housing
- Chip tray
- Tools
Optional accessories:
- Universal-tilting table 630 x 300 mm (Art.Nr.:02-1305)
- Dividing head (Art.Nr.:02-1306)
- Slotting head (Art.Nr.:02-1307)
- Boring head shank for precision boring head ISO 40 (Art.Nr.:25-1011)
- Boring head combo package diam. 75 mm, incl. boring bars (Art.Nr.:25-1020)
- Mill chuck set OZ, ISO 40, 3 - 25 mm, 15 pcs. (Art.Nr.:26-1011)
- Adapter SK / MT - ISO 40 / MT 2 (Art.Nr.:26-1067)
- Adapter SK / MT - ISO 40 / MT 3 (Art.Nr.:26-1068)
- Adapter SK / MT - ISO 40 / MT 4 (Art.Nr.:26-1069)
- Horizontal & vertical rotary table HV 10 - 250 mm (Art.Nr.:27-1002)
- Semi-universal dividing head BS-1 (Art.Nr.:27-1046)
- Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
- Opening wider machine vise FJ 125 (Art.Nr.:28-2086)
- Hydro machine vise AH 125 with swivel base (Art.Nr.:28-2116)
- Hydraulic machine vise PHV 130 with swivel base (Art.Nr.:28-2121)
- 28 pcs. Standard steel parallel set (Art.Nr.:35-1020)
- 10 pcs. TiN-coated roughing end mills, 6 - 25 mm (Art.Nr.:42-1016)
- 20 pcs. HSS TiN-coated end mills, 3 - 12 mm (Art.Nr.:42-1020)
- 75° face milling cutter diam. 80 mm (Art.Nr.:42-1085)
- Taper shell end mill holder ISO 40 - 27 mm (Art.Nr.:26-1058)
- Machine mount NE 120 (Art.Nr.:53-2011)
- Bernardo Drilling fluid DRILL, 1:20 dilutable, 5 l canister (Art.Nr.:54-1200)
|
