Bernardo GBS 180 B metal bandsaw

Product No.:
GBS 180 B
Shippingtime:
1-3 Weeks (abroad may vary)
Weight per unit:
185 kg
1.898,64 EURplus 19 % tax, excl. Shipping costs
Bernardo GBS 180 B Metallbandsäge

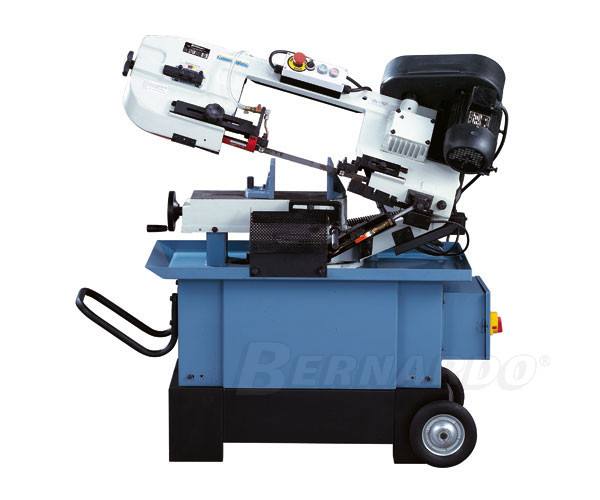

Bernardo GBS 180 B metal bandsaw.

The mitre band saw GBS 180 B with tiltable sawframe allows space-saving work, as the position of the marterial need not be altered.



Cutting capacity round 90°

180 mm

Cutting capacity flat 90°

180 x 260 mm

Cutting capacity round 45°

105 mm

Cutting capacity flat 45°

120 x 105 mm

Working height

780 mm

Sawblade dimension

2360 x 20 x 0,9 mm

Cutting speeds

22 / 34 / 49 / 64 m/min

Coolant tank

10 Liter

Coolant pump S1 100%

50 W

Motor power output S1 100%

0,75 kW

Motor power input S6 40%

1,1 kW

Voltage

400 V

Machine dimension (L x D x H)

1220 x 610 x 1580 mm

Weight approx.

185 kg



  • For mitre cuts the sawframe can be tilted up to 45°
  • 4 cutting speeds for optimal adjusting to the workpiece
  • Including carriage and transport handle for easy relocation
  • For cutting of sheet metal also vertical useable
  • For cutting of profiles, tubes, full rivet material out of iron, non-iron materials, plastics,...
  • Smoot, vibration-free run due to the use of high-class materials
  • Cutting pressure of the sawframe via valve hydraulic adjustable
  • Optimal balance between price and performance ratio, ideal for the ambitious do-it-yourselfer



Standard accessories:

  • Sawblade
  • Coolant system
  • Motor protection switch
  • Quick clamping vice
  • Moveable machine stand
  • Material fence
  • Supporting table for vertical cutting
  • Automatic shut-down


Bernardo GBS 180 B Metallbandsäge Bernardo GBS 180 B Metallbandsäge Bernardo GBS 180 B Metallbandsäge

Bernardo GBS 180 B Metallbandsäge
