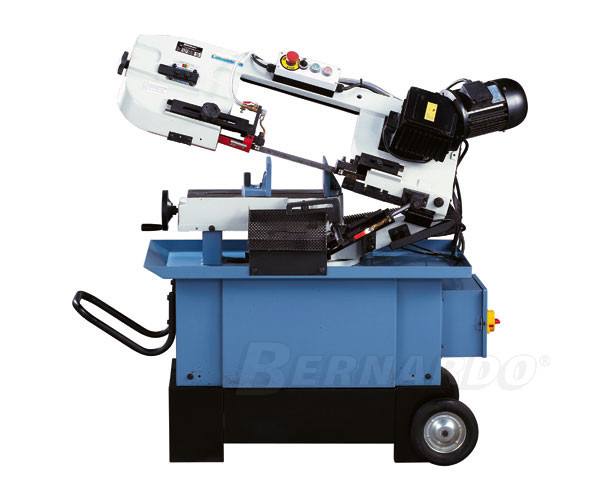

The mitre cutting bandsaw GBS 180 G allows due to the 3-step gear a quick and easy adjustment of the cutting speed and is suitable for do-it-yourselfer as well as schools and training workshops.
Cutting capacity round 90°
180 mm
Cutting capacity flat 90°
180 x 260 mm
Cutting capacity round 45°
105 mm
Cutting capacity flat 45°
120 x 105 mm
Working height
780 mm
Sawblade dimension
2360 x 20 x 0,9 mm
Cutting speeds
39 / 66 / 82 m/min
Coolant tank
10 Liter
Coolant pump S1 100%
50 W
Motor power output S1 100%
0,75 kW
Motor power input S6 40%
1,1 kW
Voltage
400 V
Machine dimension (L x T x H)
1220 x 610 x 1580 mm
Weight approx.
185 kg
Tiltable sawframe (up to 45°) for mitre cuts
3 adjustable cutting speeds, adjustable via gear unit
Supporting table for vertical cuts included at the standard accessories
Easy relocation due to the serially carriage and transport handle
Coolant system and chip tray included at the standard accessories
Optimal power transmission to the wheel via hardened and grinded worm shaft and bronze worm gear
Tension-free sawframe out of cast iron guarantee high cutting accuracy
