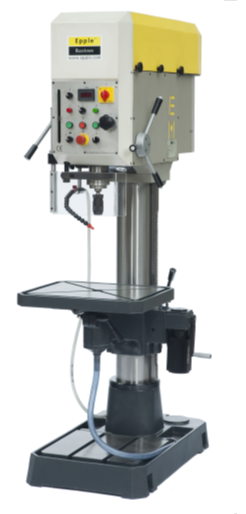

Epple H-SB 50 HIGHLINE COLUMN DRILLING MACHINE |
INDUSTRIAL MACHINES COMBINING PERFORMANCE AND ECONOMY
» stability and smooth running by massive assemblies » powerful 2-step electric aluminum motor with cooling fins » forward and reverse operation » step less speed control by PIV-gears made of high performance steel, full speed range without belt » digital LED speed display » selection switch for drilling, threading and serial production » threading device for threads up to M40 » incorporated hardened cone ejection for long lifespan » adjustable drill depth stop with millimeter scale and LED display » auto spindle feed with 4 speeds, electromagnetic coupling, switch-controlled at hand-lever (model H-SB 50 V HIGHLINE) » hardened and ground toothed gears » hardened and ground main spindle of heavy duty steel EN 353 » massive, manually trimmed and solid work table with T-slots for 14mm sliding blocks; tilting, rotating with circular cooling liquid channel » massive, manually trimmed foot plate with circular cooling liquid channel » comfortable electrical and mechanical table height adjustment with toothed rack » toothed rack on ball bearings for easy table rotation around the column even when highly loaded » height adjustable spindle guard (protective glass), auto shutdown by micro switch » RÖHM quick-action drill chuck as standard 3 – 16mm » powerful cooling liquid facility » LED working light » laser pointer for exact positioning |
