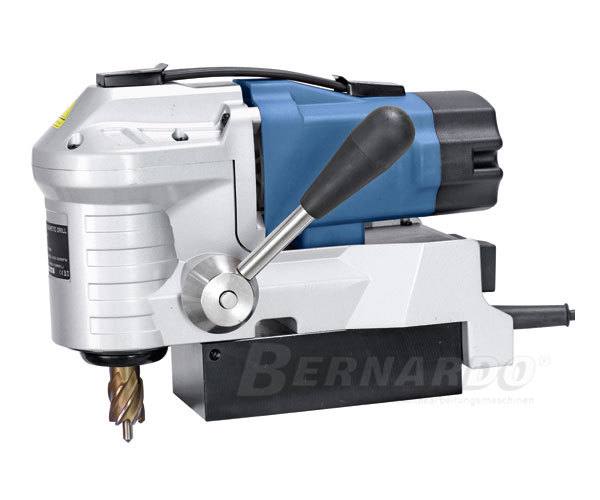

Bernardo magnetic drilling machine MD 3530
|
|
Compared to standard magnetic drilling machines, the MD 3530 features smaller dimensions, making it the best option when working in limited spaces.
|
Core drill max. Ø
|
35 mm
|
|
Core drill max. drill depth
|
30 mm
|
|
Load speed
|
390 rpm
|
|
Arbor weldon shank
|
19 mm
|
| Stroke |
40 mm |
|
Magnetic adhesion
|
15000 N
|
|
Dimension magnet base
|
165 x 80 mm
|
|
Motor power
|
1,1 kW
|
|
Voltage
|
230 V
|
|
Machine dimensions (W x D x H)
|
280 x 110 x 240 mm
|
|
Weight approx.
|
10 kg
|
- Compact construction, ideal for working in limited spaces
- Standard LED work lamp allows working in dark locations
- Spur gear designed for continuous operation
- Handle can be mounted on left or right machine side
- Highly suitable for steel construction, automobile industry, engineering etc.
- Compact construction allows for easy transport
- High magnetic force ensures high safety
- Ergonomically arranged control elements allow practical single hand operation
- Standard safety chain for vertical or over head operation
Standard accessories:
- Safety chain
- Plastic box
- LED work lamp
- Carry handle
- Reversible handle
- Tools
- User manual
Optional accessories:
- Set of core drills HSS, 12 - 22 mm, drilling depth 25 mm, 6 pcs. (Art.Nr.:41-1100)
- Set of core drills HSS, 14 - 24 mm, drilling depth 25 mm, 6 pcs. (Art.Nr.:41-1101)
- 3 flute core drill set HSS, 6 - 13 mm, 6 pcs. (Art.Nr.:41-1103)
- Power worker (Art.Nr.:51-1050)
|
| |
