Bernardo GB 32 S gearhead drilling machine

3.436,80 EURplus tax excl. Shipping costs

Product No.:
01-1260
EAN:
9009468000424
Shippingtime:
Weight per unit:
310 kg
Bernardo GB 32 S Säulenbohrmaschine

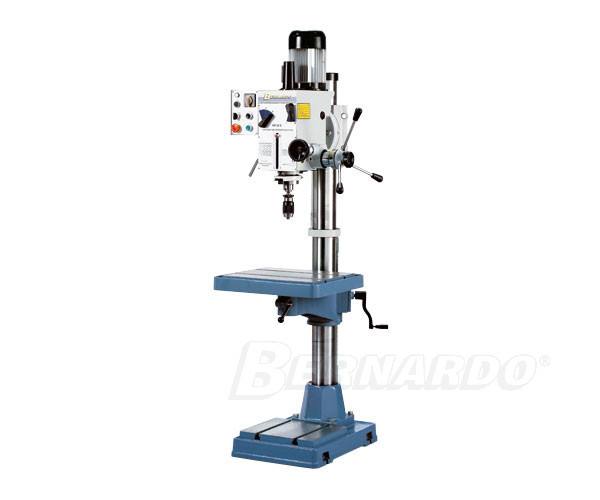

Bernardo GB 32 S gearhead drilling machine.

The gearhead drilling machine GB 32 S features a robust and vibration-free construction. Due to the tiltable and rotatable gear head these machines are suitable for general use in workshops.

Drilling capacity max.:                                     32 mm
Drill chuck:                                                        3 - 16 mm / B 18
Morse taper:                                                     MT 4
Spindle speeds:                                              (12) 50 - 2520 rpm
Distance spindle to column:                         272 mm
Distance spindle / table max.:                      790 mm
Distance spindle / base:                               1220 mm
Spindle stroke:                                                130 mm
Column diameter:                                          115 mm
Table size:                                                       470 x 400 mm
T-slot size:                                                       14 mm
Base:                                                                390 x 330 mm
Motor power output S1 100%:                     0,85 / 1,1 kW
Motor power input S6 40%:                          1,1 / 1,5 kW
Machine dimension (W x D x H):                 660 x 710 x 2050 mm
Weight approx.:                                               310 kg

  • Processed machine foot for mounting of especially large workpieces
  • 2-step motor with 12 adjustable speeds
  • Serially equipped with keyless drill chuck 3 - 16 mm / B 18
  • Big dimensioned table with T-slots
  • Easy and quick change of speeds by means of a handle
  • Gear head tiltable by 180°, adjustable in height and turnable by 360°
  • Smooth run due to grinded gear wheels running in oil
  • Adjustment from rough manual feed to smooth manual feed via clutch
  • Right and left turning for thread cutting

Standard accessories:
  • Keyless drill chuck 3 - 16 mm / B 18
  • Drill chuck arbor MT 4 / B 18
  • Morse taper drill sleeve MT 4 / 3, MT 3 / 2
  • Protective cover
  • Tools


Bernardo GB 32 S Säulenbohrmaschine Bernardo GB 32 S Säulenbohrmaschine Bernardo GB 32 S Säulenbohrmaschine
