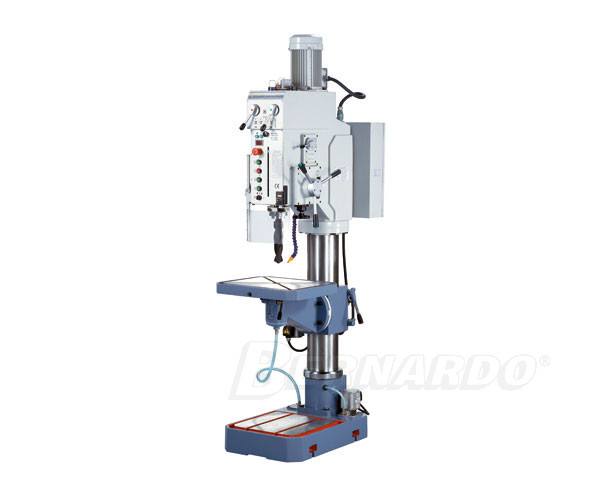

Bernardo GB 50 TH drilling machines with motoric table stroke |
|
The GB 50 TH is our top model in the series of drilling machines with motoric table stroke. Due to its solid construction and the large drilling capacity of 50 mm this machine can be used in industrial manufacturing or in serial production.
Drilling capacity in steel
|
50 mm
|
Drilling capacity in cast iron
|
60 mm
|
Thread cutting max.
|
M42
|
Drill chuck
|
1 - 13 mm / B 16
|
Morse taper
|
MT 4
|
Speeds / Steps
|
52 - 1400 rpm / 12
|
Feed area
|
0,1 / 0,2 / 0,3 / 0,4 mm/r
|
Throat
|
360 mm
|
Distance spindle / table max.
|
595 mm
|
Distance spindle / base
|
1190 mm
|
Spindle stroke
|
240 mm
|
Column diam.
|
180 mm
|
Table size / T-slot size
|
580 x 460 mm / 14 mm
|
Motor power
|
3,0 kW
|
Machine dimension (W x D x H)
|
750 x 950 x 2380 mm
|
Weight approx.
|
710 kg
|
-
Motoric table stroke to reduce non-production times
-
Serially with thread cutting device and automatic tool release
-
Solid and free-of-vibration construction for precise work
-
High-power drive motor for continuous use
-
Digital readout of speeds and drill depth stop
-
Solid grey cast iron table with tilt- and turnable support
-
Increased efficiency due to comprehensive standard supply
-
Hardened and grinded gear wheels make for a smooth run
-
4 automatic spindle feeds via electromagnetic clutch
Standard accessories:
-
Drill chuck 1 - 13 mm / B 16
-
Drill chuck arbor MT 4 / B 16
-
Morse taper drill sleeve MT 4 / 3, MT 4 / 2
-
Motoric table stroke
-
Coolant pump
-
Electromagnetic spindle feed
-
Thread cutting device
-
Automatic tool release device
-
Halogen light
-
Digital readout of speeds
-
Digital readout of drill depth
-
Protective cover
|
|
|
|
