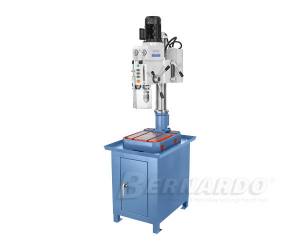

Bernardo gearhead table drill GB 30 T


1.847,77 EURplus 19 % tax, excl. Shipping costs



Product No.:
01-1251
Shippingtime:
Weight per unit:
270 kg



Bernardo gearhead table drill GB 30 T

Low cost and high performance make this gearhead table drill with a drilling capacity of 30 mm a popular model for workshops and locksmiths.





Drilling capacity max.

30 mm

Thread cutting max.

M 16

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 3

Spindle speeds

(6) 125 - 2825 rpm

Distance spindle to column

240 mm

Distance spindle to base

655 mm

Spindle stroke

115 mm

Column diameter

100 mm

Table size / T-slot size

- / 14 mm

Work surface base 320 x 315 mm

Motor power output S1 100%

0,75 kW/ 400 V

Motor power input S6 40% 1,1 kW/ 400 V

Machine dimensions (W x D x H)

450 x 700 x 1440 mm

Weight approx.

270 kg

  • Lever on gear head allows easy speed adjustment
  • Adjustable drill depth stop includes scale
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • Left and right rotation allows thread cutting
  • Grey, cast-iron table includes T-slots and coolant grooves
  • Automatic tool release device and halogen lamp come standard
  • High concentricity - spindle runs on high-quality bearings
  • Hardened, polished gear wheels ensure smooth run
  • Solid, polished steel column is designed for constant use



Standard accessories:

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • Halogen lamp
  • Protective cover



Optional accessories:

  • Morse taper drill chuck arbor  MT 3 - B 16 (Art.Nr.:24-1005)
  • Keyless drill chuck with direct mount MT 3, 1 - 16 mm (Art.Nr.:24-1072)
  • Keyless drill chuck 1 - 16 mm / B 16 (Art.Nr.:24-1082)
  • Double roller tapping chuck set MT 3, M 3 - M 12 (Art.Nr.:24-1090)
  • Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
  • Drilling machine vise BMI 125 (Art.Nr.:28-2016)
  • Drilling machine vise BMS 140 (Art.Nr.:28-2019)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)
  • Metric size taper shank drills MT 2/3, 9 pcs. - 14,5-30 mm, set B (Art.Nr.:41-1050)
  • Coolant pump 11 l - 400 V (for self installment) (Art.Nr.:51-1000)
  • Universal coolant pump with plastic tank 14 Liter - 230 V (for self installment) (Art.Nr.:51-1003)
  • Bernardo Drilling fluid DRILL, 1:20 dilutable, 5 l canister (Art.Nr.:54-1200)
  • Stand (Art.Nr.:56-1027)
