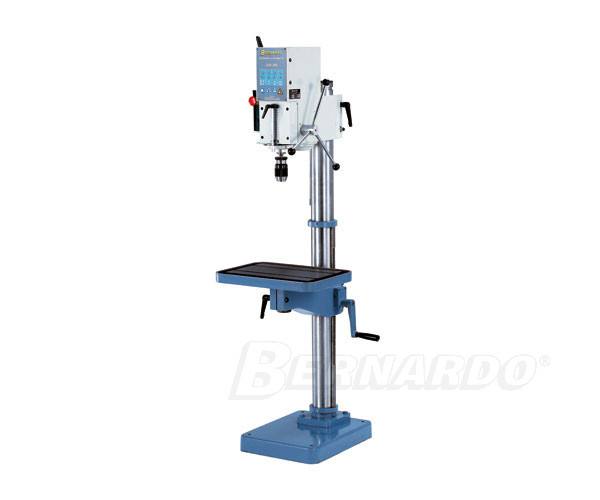

Bernardo GHD 25 S drilling machine


1.939,70 EURplus 19 % tax, excl. Shipping costs



Product No.:
01-1245
EAN:
9009468000387
Shippingtime:
Weight per unit:
180 kg
Bernardo GHD 25 S Getriebe-Säulenbohrmaschine

Bernardo GHD 25 S drilling machine.

This robust drilling machine with a drilling power of max. 25 mm is a price-worthy but high-power machine for all crafts entreprises and locksmitheries.

Drilling capacity max.:                                               25 mm
Keyless drill chuck:                                                   1 - 16 mm / B 16
Morse taper:                                                               MT 3
Spindle speeds:                                                        105 - 2900 rpm
Steps:                                                                          8
Distance spindle to column:                                   255 mm
Distance spindle / table:                                          820 mm
Spindle stroke:                                                           120 mm
Column diameter:                                                     100 mm
Table size:                                                                  500 x 350 mm
T-slot size:                                                                  14 mm
Motor power output S1 100%:                                0,65 / 0,90 kW (400 V)
Motor power input S6 40%:                                     0,90 / 1,25 kW (400 V)
Machine dimension (W x D x H):                            500 x 570 x 1710 mm
Weight approx.:                                                          180 kg

  • Drill head adjustable in height and turnable
  • Grey cast iron table with cooling grooves
  • 8 adjustable speeds due to 2-step motor
  • Table tiltable
  • Solid, grinded steel column
  • Spindle runs in precision ball bearing
  • Drill depth adjustable via stop
  • Switch for right and left turning
  • Helical gears for ideal transmission of power

Standard accessories:
  • Keyless drill chuck 1 - 16 mm / B 16
  • Morse taper drill sleeve MT 3 / 2, MT 3 / 1
  • Automatic tool release device
  • Drill chuck arbor MT 3 / B 16
  • Protective cover
