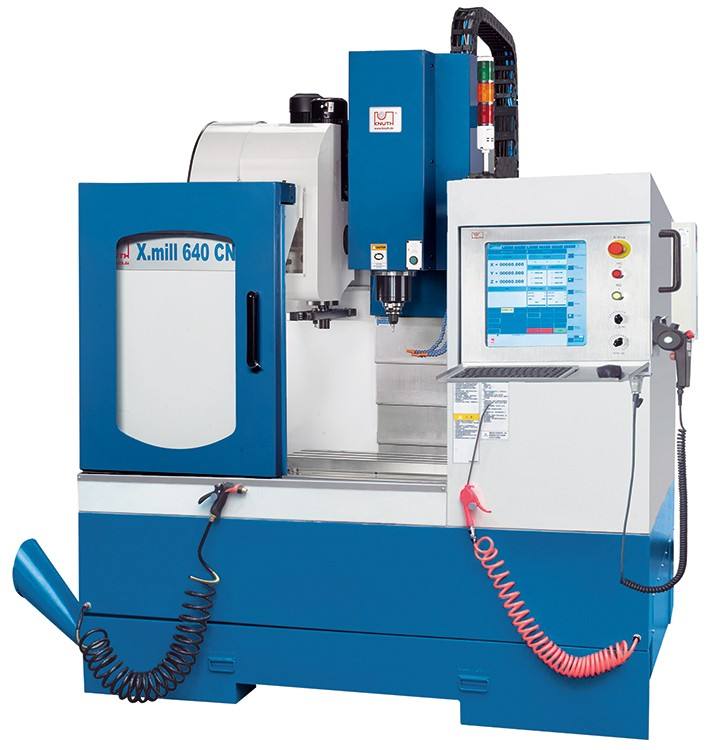

Knuth CNC Vertical Machining Center X.mill 640 GP
- Modern GPlus 450 CNC Control
- rapid feed 30 m/min
- premium linear guides on all axes
- powerful axis servo drives
- solid cast-iron machine body serves as foundation for high precision at high travel speeds, and powerful chip removal
- totally enclosed work space with side doors ensures maximum safety and flexibility
- quick tool changes and pneumatic clamping for reduced cost
- user-friendly and intuitive controls - with touch screen technology
|
Working area
Travel X-axis
Travel Y-axis
Travel Z-axis
Table dimensions
Table load capacity
Table height
Number of T-slots
T-slots, width
T-slots, spacing
Spindle nose-to-table surface distance
|
640 mm
400 mm
500 mm
750x360 mm
300 kg
850 mm
3 Pieces
18 mm
100 mm
50 - 550 mm
|
|---|---|
|
Headstock
Speed range
Spindle thoat
Spindle mount
|
60 - 8.000 rpm
430 mm
MAS BT 40
|
|
Feed
Rapid feed X-axis
Rapid feed Y-axis
Rapid feed Z-axis
Work feed
|
30.000 mm/min
30.000 mm/min
30.000 mm/min
5 - 5.000 mm/min
|
|
Tool head
Number of tool stations
Tool size Ø x L (max.)
Tool weight max.
Tool-changing time chip/chip
Tool-change time tool/tool
|
16 Pieces
78x250 mm
8 kg
7 s
2,8 s
|
|
Headstock
Speed range
Spindle thoat
Spindle mount
|
60 - 8.000 rpm
430 mm
MAS BT 40
|
|
Accuracies
Positioning accuracies
Repeatabilities
|
± 0,003 mm / 0.00012"
± 0,0025 mm / 0.00001"
|
|
Drive capacity
Motor rating main drive
Main drive, continuous load
|
11 kW
7,5 kW
|
|
Measures and weights
Overall dimensions
Weight
|
2.300x1.800x2.400 mm
4.200 kg
|
Standard Equipment
GPlus 450 control, electronic hand-wheel, spiral chip conveyor, servo drive for all 3 axes, 16-station tool changer, pneumatic tool clamping, air conditioner, totally enclosed work space, work lamp, Ethernet, USB interface, tilted chip tray, automatic central lubrication, spindle oil cooler, operating tools, operator manual
