» » » Bernardo cycle lathe FEL 1860 ENC - 460 x 1400

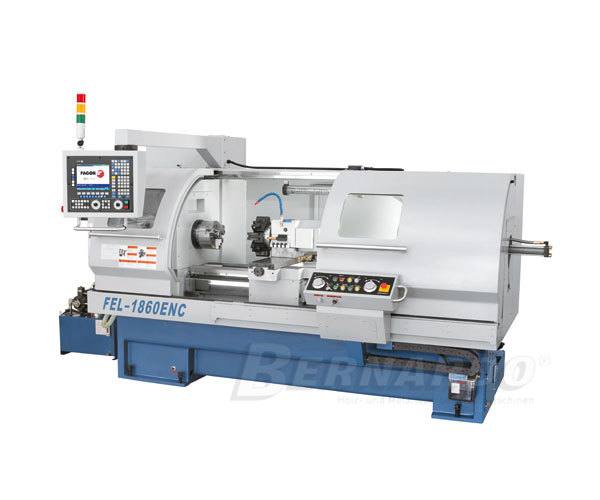

Bernardo cycle lathe FEL 1860 ENC - 460 x 1400
|
|
The FEL cycle lathe is suitable for economic production of single parts and small series at best possible accuracy and can be used for light to medium-heavy turning works.
Distance between centers
|
1400 m
|
Center height
|
230 mm
|
Swing over bed
|
460 mm
|
Swing over cross slide
|
260 mm
|
Bed width
|
305 mm
|
Spindle bore
|
65 mm
|
Spindle nose fixture
|
A2-6
|
Speed range
|
270 - 830 / 831 - 2500 rpm
|
Travel x-axis
|
230 mm
|
Travel z-axis
|
1350 mm
|
Rapid feed x- / z-Axis
|
7,5 / 10 m/min
|
Diameter of tailstock sleeve
|
68 mm
|
Travel of tailstock sleeve
|
152 mm
|
Taper of tailstock sleeve
|
MT 4
|
Motor power output S1 100%
|
7,5 kW
|
Motor power input S6 40%
|
11,0 kW
|
Weight approx.
|
2600 kg
|
- 2 electronic handwheels for manual travel of x- and y-axis come standard
- Both axis feature AC-servo motors and ball screw
- Wide cross slide allows mounting of various tool post holders
- Solid tailstock features oversize throat - ideal when using automatic 8-station turret
- Stepless speed range via 2 pneumatically adjusted gear settings
- High rapid traverse allows significant reduction of downtime
- Brushless AC-motor drive and feed drive
- User-friendyl, easy-to-understand Fagor 8055 TC control
- Solid headstock features precisely bedded main spindle (spindle bore 65 mm)
- Main spindle features pre-tightened high-quality angular bearings, guaranteeing best possible accuracy
Standard accessories:
- Cycle control Fagor 8055 TC
- Coolant device
- 4-way tool post holder
- Machine light
- Live center MT 4
- Tiltable control panel
- Automatic lubrication of spindle head
- Automatic lubrication of longitudinal and cross slide
- 2 electronic handwheels
- Serial interface RS 232
- Machine casing
- Tools
Optional accessories:
- 3-jaw chuck diam. 250 mm A2-6 *
- 3-jaw hollow hydraulic chuck & pump diam. 200 mm *
- Electric turret H4 *
- Turret V8 *
- Tailstock shaft driven by hydraulic *
- Chip conveyor
- Steady rest *
- Follow rest *
|
|
|
|
|
|
