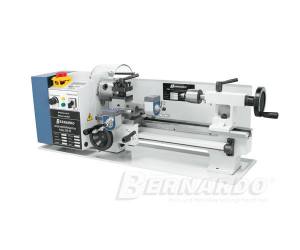

| The Hobby 350 VD bench lathe - compared to the Hobby 300 VD - features a 50 mm greater distance between centres, a convenient digital speed display and a slightly more powerful motor. | Distance between centers | 350 mm | | Center height | 90 mm | | Swing over bed | 180 mm | | Swing over cross slide | 110 mm | | Spindle bore | 21 mm | | Taper at spindle bore | MT 3 | | Speed range, stepless | 100 - 1200 / 100 - 3000 rpm | | Longitudinal feed | 0,1 / 0,2 mm/rev. | | Metric thread | (10) 0,4 - 2,0 mm | | Travel of tailstock sleeve | 60 mm | | Taper of tailstock sleeve | MT 2 | | Motor power output S1 100% | 0,35 kW | | Motor power input S6 40% | 0,50 kW | | Machine dimensions (W x D x H)* | 770 x 300 x 310 mm | | Weight approx. | 44 kg | * without stand - Spindle concentricity guaranteed ≤ 0.009 mm
- Digital readout for cross slide and top slide come standard
- Optimal speed readout on digital display
- Ideal for working with steel, non-ferrous metals and plastics
- Various applications: thread cutting, longitudinal, face and internal turning etc.
- Powerful DC-Motor with 350 W drive power
- Change gears for thread cutting come standard
- Guides are adjustable via gibs
- Tailstock can be adjusted for taper turning
Standard accessories: - 3-jaw chuck (80 mm)
- Chuck guard
- Tool holder
- Change gears
- Chip guard
- Digital speed display
- Digital display for cross and compound slide
- Dead centre
- Tools
Optional accessories: - 4-jaw independent chuck 100 mm with flange (Art.Nr.:03-1540)
- Face plate diam. 160 mm (Art.Nr.:03-1541)
- Steady rest (Art.Nr.:03-1545)
- Follow rest (Art.Nr.:03-1550)
- Mill chuck set 4 - 16 mm (8-pcs.) (Art.Nr.:03-1551)
- Mill attachment (Art.Nr.:03-1552)
- Economy live center Typ PC - MT 2 (Art.Nr.:22-1001)
- Medium duty live center with 7 interchangable tips SMA - MT 2 (Art.Nr.:22-1040)
- Ball nose live center MT 2 / 60 mm (Art.Nr.:22-1050)
- 40 pos. tool post & holder set System Multifix size A, incl. 4 tips (Art.nr.:23-1000)
- Costs of assembly Multifix size A and E ** (Art.Nr.:23-1090)
- Quick cange set model Bernardo size 1, incl. 4 tips (Art.Nr.:23-1055)
- Turning and facing holder size 1 (Art.Nr.:23-1058)
- Costs of assembly for quick change set model Bernardo (Size1, 2, 3) ** (Art.Nr.:23-1089)
- Carbide tipped tool set 10 mm, 38-pcs. (Art.Nr.:44-1015)
- HSS-Carbide tipped tool set, 10 mm, 8-pcs. (Art.Nr.:44-1024)
- Indexable carbide turning tool set, 10 mm, 5 pcs. (Art.Nr.:44-2020)
- 4 pcs. turning tools set incl. 1 pc. boring bar, 10 mm (Art.Nr.:44-2030)
- 6 pcs. turning tools set incl. 1 pc. boring bar, 10 mm (Art.Nr.:44-2051)
- Multipurpose turning tool set, 10 mm, 7 pcs., TiN-coated set B (Art.Nr.:44-3082)
- Stand D1 (Art.Nr.:56-1050)
- Stand (Art.Nr.:56-1000)
|
