Profi 660 turning lathe

Name: Bernardo Profi 660 turning lathe 230 Volt
Brand: Bernardo
SKU: Profi 660 230 Volt
Price: 2180.56 EUR
Availability: InStock

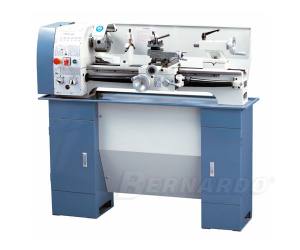

Bernardo Profi 660 turning lathe 230 Volt.

Large accessory is already included in the basic version of the shapely turning machine Profi 660. Moreover, it offers an ideal service package at a low investment for modellers, workshops etc.

Distance between centers	660 mm
Center height	135 mm
Swing over bed	270 mm
Spindle bore	26 mm
Taper of spindle bore	MT 4
Speed range	(6) 125 - 2000 rpm
Longitudinal feed	(9) 0,05 - 0,4 mm/rev.
Metric thread	(26) 0,5 - 3,5 mm
Inch thread	(36) 8 - 56 Gg/1“
Travel of tailstock sleeve	65 mm
Taper of tailstock sleeve	MT 2
Motor power output S₁ 100%	0,75 kW (1,0 HP) / 230 V or 400 V
Motor power input S₆ 40%	1,0 kW (1,36 HP) / 230 V or 400 V
Machine dimension (W x D x H)	1380 x 590 x 470 mm
Weight approx.	150 kg

Large accessory included in the basic version
Serially equipped with 26 mm spindle drill
Tailstock can be displaced for taper turning
Electronical equipment selective with 230 V or 400 V
Bed guideways inductive hardened and grinded
Serially equipped with lead screw for thread cutting and automatic longitudinal feed
User friendly arrangment of control elements
High true running accuracy due to precision taper roller bearing
Easy and quick speed change

Standard accessories:
