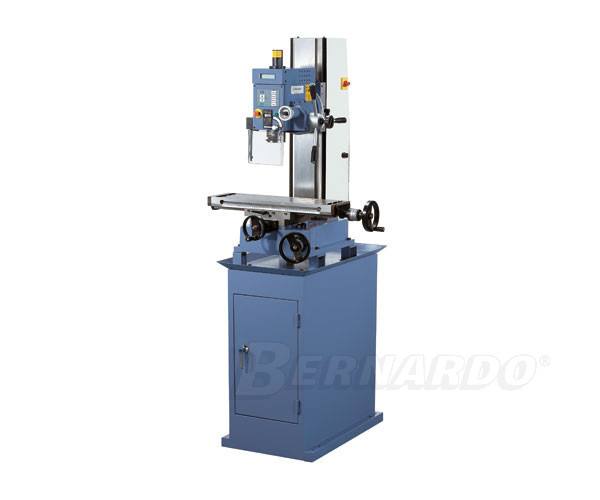

The BF 25 Super drilling and milling machine features a high quality of processing and several interesting innovations, such as a direct current drive and a membrane keyboard. The machine is very popular among both professionals and model-makers along with all areas of training. | Drill capacity in steel | 25 mm | | Face mill capacity max. | 63 mm | | End mill capacity max. | 25 mm | | Thread cutting max. | M 12 | | Distance spindle to column | 230 mm | | Distance spindle / table | 25 - 415 mm | | Spindle stroke | 70 mm | | Spindle speed, stepless | 100 - 1750 rpm | | Spindle taper | MT 3 | | Table size / T-slot size | 550 x 160 mm / 12 mm | | Travel (x / y) | 400 / 140 mm | | Mill head tiltable | 90° R / 30° L | | Height adjustment of mill head | 390 mm | | Motor power output S1 100% | 1,0 kW / 230 V | | Motor power input S6 40% | 1,3 kW / 230 V | | Machine dimensions (W x D x H)* | 750 x 670 x 980 mm | | Weight approx. | 165 kg | * without stand -
Direct current motor for ideal torque at lower speed -
Digital display for speed and drilling depth as standard equipment -
Large cross table with T-slots, well processed - Dovetail guiding for the x-, y- and z-axis, adjustable by gibs
- Membrane keyboard for stepless speed adjustment
- Mill head tiltable to both sides for angular boring, milling of bevels etc.
- Handwheel, located on the front of the machine, allows easy height adjustment
- Thread cutting device comes standard - left and right rotation
- Handwheel for precise spindle feed at milling
- Many possible applications such as face milling, thread cutting, horizontal slotting etc.
Standard accessoires: - Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Drawbar M 12
- Digital speed indicator
- Digital spindle stroke indicator
- Tools
Optional accessories: - Mill chuck set OZ, MT 3, 4 - 16 mm, 9 pcs. (Art.Nr.:18-1007)
- Mill chuck set ER 25, MT 3, 4 - 16 mm, 8 pcs. (Art.Nr.:26-1003)
- Mill chuck set ER 32, MT 3, 3 - 20 mm, 13 pcs. (Art.Nr.:26-1004)
- Mill chuck set ER, MT 3, 3 - 25 mm, 16 pcs. (Art.Nr.:26-1006)
- Double roller tapping chuck set MT 3, M 3 - M 12 (Art.Nr.:24-1090)
- Boring head combo package diam. 50 mm, incl. boring bars (Art.Nr.:25-1015)
- Horizontal & vertical rotary table HV 4 set (Art.Nr.:27-1025)
- Horizontal & vertical rotary table RT 4 - 100 mm (Art.Nr.:27-1032)
- Box table for horizontal milling (Art.Nr.:27-1075)
- Deluxe clamping kit set 52 pcs., 12 mm, M 10 (Art.Nr.:28-1000)
- Precision machine vise PS 100 (Art.Nr.:28-2027)
- Precision universal machine vise PGS 50 (Art.Nr.:28-2041)
- Machine vise KV 100 (Art.Nr.:28-2080)
- Opening wider machine FJ 100 (Art.Nr.:28-2085)
- Edge finder with indicator lamp SOE 20 S diam. 20 mm / L 120 (Art.Nr.:32-1060)
- Edge finder set 5 pcs. (Art.Nr.:32-1067)
- 1-axis digital readout system POSITRON P2 - 600 mm (for self installation) (Art.Nr.:37-1050)
- 10 pcs. TiN-coated roughing end mills, 6 - 25 mm (Art.Nr.:42-1016)
- 20 pcs. HSS TiN-coated end mills, 3 - 12 mm (Art.Nr.:42-1020)
- Indexable carbide end mill 30 mm, MT 3 (Art.Nr.:42-1026)
- Carbide tips (2 pcs.) for 42-1026 (Art.Nr.:42-1028)
- High performance 90° facing square shoulder cutter diam. 50 mm (Art.Nr.:42-2051)
- Auto feeder (Art.Nr.:53-1007)
- Stand BF 4 (Art.Nr.:56-1025)
|
