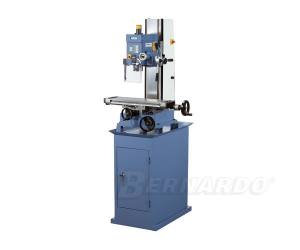

Bernardo BF 25 Super drilling and milling machine

The drilling and milling machine BF 25 Super feature a high processing and several interesting innovations, such as direct current drive and operation via plastic foil keyboard. They are mainly used by professionals, in the area of modelbuilding but also in the educational area.

Drill capacity in steel	25 mm
Face mill capacity max.	63 mm
End mill capacity  max.	25 mm
Thread cutting max.	M 12
Distance spindle to column	230 mm
Distance spindle / table	25 - 415 mm
Spindle stroke	70 mm
Spindle speed, stepless	100 - 1750 rpm
Spindle taper	MT 3
Table size	550 x 160 mm
Travel (x/y)	400 / 140 mm
Mill head tiltable	90° R / 30° L
Mill head adjustable in height	390 mm
T-slot size	12 mm
Motor power output S1 100%	1,0 kW / 230 V
Motor power input  S6 40%	1,3 kW / 230 V
Machine dimension (W x D x H)	750 x 670 x 980 mm
Gewicht ca.	165 kg

• Direct current motor for ideal torque in the lower areas of speed
• Digital readout of speeds and drill depth included at the standard accessories
• Big dimensioned cross table with T-slots, precise surfaced
• Dovetail guiding for x-, y- and z-axis, adustable by gibs
• Stepless adjustable speed, adjustable via plastic foil keyboard
• Double-side tiltable mill head for inclined boring, milling of bevels,....
• Comfortable height adjustment of the mill head via handwheel on the front side
• Serially with thread cutting device, left and right turning device
• Precise spindle feed at milling with handwheel
• Multifunctional use such as face milling, thread cutting, horizontal slotting,....



Standard accessories:

• Drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Drawbar M 12
• Digital speed indication
• Digital spindle stroke indication
• Tools



Further optional accessories:

• Table feed AF 25 for x-axis
• Box table for horizontal mill works
• Stand BF 4
