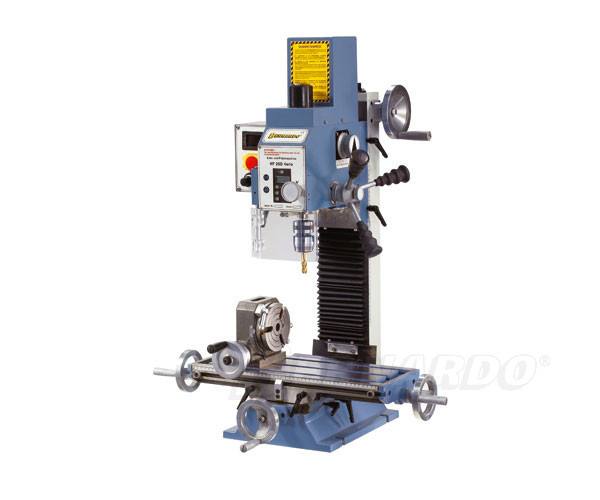

KF 25 D Vario drilling and milling machine

Name: Bernardo KF 25 D Vario drilling and milling machine
Brand: Bernardo
SKU: 02-1026
Price: 1653.5 EUR
Availability: InStock

Bernardo KF 25 D Vario Bohr- und Fräsmaschine

Bernardo KF 25 D Vario drilling and milling machine.

The drilling and milling machine KF 25 D Vario features a small and robust construction. Due to stepless speed range regulation the speed can be adapted to the respective workpiece. Due to the extensive opportunities this machine is ideal for training workshops, precision engineer and ambitious model maker.

Drill capacity max.	20 mm
Face cutter max.	63 mm
End mill max.	20 mm
Distance spindle to column	170 mm
Spindle stroke	52 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Table size	500 x 180 mm
Travel (x/y)	305 / 150 mm
Tiltable mill head	-90° to +90°
Mill head adjustable in height	275 mm
T-slot size	11 mm
Motor power output S₁ 100%	0,60 kW / 230 V
Motor power input S₆ 40%	0,95 kW / 230 V
Machine dimension (W x D x H)	750 x 560 x 930 mm
Gewicht ca.	110 kg

Various areas of application such as thread cutting, groove milling, horizontal slotting,....
Serially equipped with left and right turning device
Ergonomically arranged control elements
Massive cross table with scale
Speed range can be adjusted steplessly to the workpiece
2-step gear unit for optimal power transmission
High accuracy of the spindle through precision bearing
Double-side tiltable mill head for inclined boring, milling of bevels,....
Serially with digital spindle stroke indication

Standard accessories:
