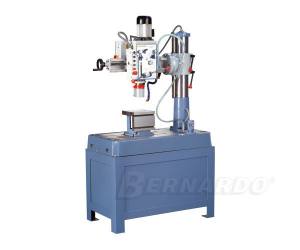

» » » Bernardo RD 600 radial drilling machine
|
|
Bernardo RD 600
radial drilling machine
|
|
The highly accessorized radial drilling machine RD 600 features comprehensive accessories, such as thread cutting device, 3 automatic drill feeds, a box table, a tiltable extension arm, cooling pump and therefore equals an ideal service package at a low investment.
Drill capacity in steel
|
25 mm
|
Drill capacity in cast iron
|
32 mm
|
Thread cutting max.
|
M22
|
Throat min./max.
|
270 - 700 mm
|
Vertical movement of the support
|
410 mm
|
Spindle stroke
|
130 mm
|
Speeds
|
(8) 100 - 1600 rpm
|
Morse taper
|
MT 3
|
Feed area
|
0,08 / 0,14 / 0,22 mm/r
|
Distance spindle / base
|
270 - 680 mm
|
Base plate / T-slot size
|
915 x 620 mm / 18 mm
|
Box table (L x W x H)
|
250 x 250 x 250 mm
|
Column diam.
|
150 mm
|
Motor power output S1 100%
|
1,1 kW / 400 V
|
Motor power input S6 40% |
1,5 kW / 400 V |
Machine dimension (L x W x H)
|
1210 x 630 x 1570 mm
|
Weight approx.
|
380 kg
|
-
Support and drill head are mechanically adjustable
-
Adjustment in height of extension arm via trapezoid spindle
-
Serially equipped with 3 automatic drill feeds (0,08 / 0,14 / 0,22 mm/r) and thread cutting device
-
Switch for right and left turning
-
Big dimensioned, grinded steel column for increased stability
-
Easy, central operation at the front of the machine
-
Wide range of speeds for ideal adjustment of cutting speed
-
Extension arm with drill head ± 45° tiltable
Standard accessories:
-
Drill chuck 3 - 16 mm / B 18
-
Drill chuck arbor MT 3 / B 18
-
Morse taper drill sleeve MT 3 / 2
- Thread cutting device
-
Box table
-
Cooling pump
-
Protective cover
Optional accessories:
|
|
|
|
