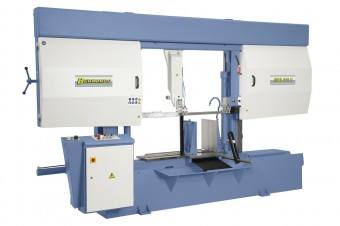

Bernardo MSB 810 H semi-automatic bandsaw

This series of semi-automatic bandsaws features a wide range of cutting capacities, making these models ideal for various applications. The semi-automatic function allows quick and easy operating.

Technical specifications

Cutting capacity round 90°	810 mm
Cutting capacity square 90°	810 x 810 mm
Cutting capacity flat 90°	850 x 810 mm
Cutting capacity round 45°	480 mm
Cutting capacity square 45°	480 x 480 mm
Cutting capacity flat 45°	480 x 850 mm
Working height	585 mm
Cutting speed, stepless	20 - 100 m/min
Bandsaw blade dimensions	8200 x 41 x 1,3 mm
Coolant pump	120 W
Motor power	4,0 kW
Machine dimensions (L x D x H)	3900 x 1200 x 2350 mm
Weight approx.	2300 kg

Features

Automatic lifting of the saw frame whith adjustable lifting height when cutting is complete
Vice tilts from 90° up to 45° for mitre cutting
Increased stability due to precisely polished linear guide for parallel cuts
Automatic blade break control stops the machine if blade breaks
Automatic shut-down at cutting end
Stepless speed change to allow precise adjustment to each workpiece
Serial roller table for operating with long workpieces
Bandsaw blade guiding features ball bearings and carbide tips
Optimal power transmission to the blade wheel due to the robust gear unit
Torsion-free, strong saw frame for precise cutting
