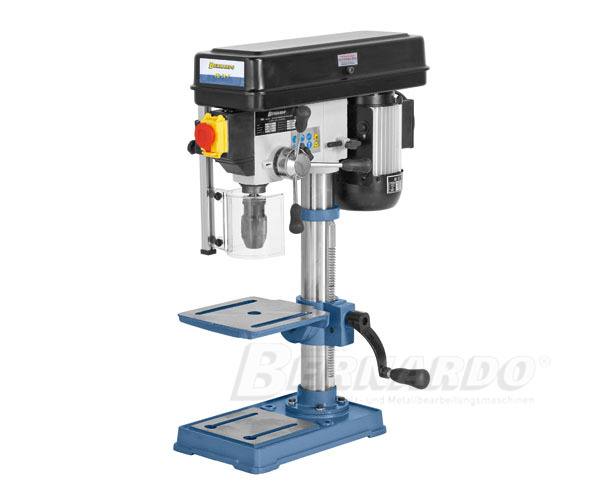

Bernardo bench drilling machine TB 14 T


246,37 EURplus tax excl. Shipping costs



Product No.:
01-1026
Shippingtime:
Weight per unit:
24 kg



Bernardo bench drilling machine TB 14 T



The inexpensive bench drilling machines, featuring a V-belt drive, are available with a drilling capacity of 13, 14 or 16 mm, making them particularly suitable for craftsmen and training purposes.



Drilling capacity max.

14 mm

Drill chuck

1 - 13 mm / B 16

Morse taper

steady / B 16

Spindle speeds

(5) 620 - 2620 rpm

Distance spindle to column

130 mm

Table tiltable

-45° to 45°

Distance spindle to table max.

285 mm

Distance spindle to base

395 mm

Spindle stroke

65 mm

Column diameter

58 mm

Table size / T-slot size

185 x 185 mm / 14 mm

Working surface of base

155 x 155 mm

Motor power output S1 100%

0,37 kW / 230 V

Motor power input S6 40%

0,55 kW / 230 V

Machine dimension (W x D x H)

300 x 510 x 690 mm

Weight approx.

24 kg



  • High-quality ball bearings ensure high spindle concentricity
  • Balanced drive wheels and high-quality belt ensure extremely smooth operation
  • Drill table swivels (±45°), height adjustable via gear rack
  • Complete with T-slots in polished base plate
  • Powerful, high-torque aluminium motor in accordance with IP 54
  • Ergonomically arranged handles ensure high work comfort
  • Treated base plate allows clamping of oversize work pieces
  • Top precision keyless drill chuck included



Standard accessories:

  • Keyless drill chuck
  • Drill chuck arbor MT 2 / B 16
  • Protective cover
  • T-slot nuts
  • Tools



Optional accessories:

  • Drilling machine vise BM 100 (Art.Nr.:28-1999)
  • Drilling machine vise BMO 85 (Art.Nr.:28-2006)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)
