Bernardo Goliath 660 universal turning lathe 2000 mm


25.481,51 EURplus 19 % tax, excl. Shipping costs



Product No.:
Goliath 660 2000mm
Shippingtime:
Weight per unit:
3050 kg
Bernardo Goliath 660 Universaldrehmaschine

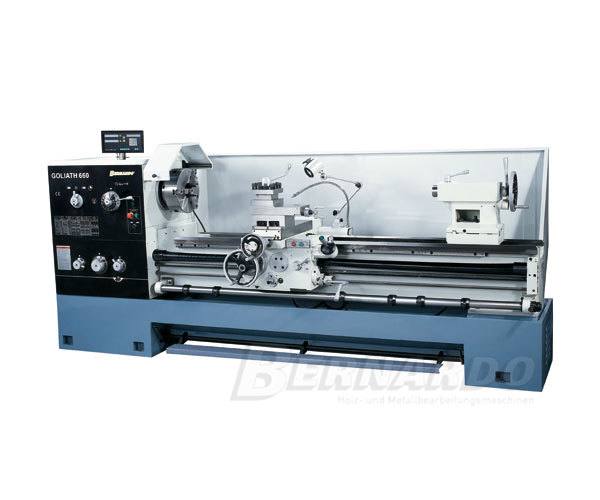

Bernardo Goliath 660 universal turning lathe 2000 mm.


The production turning lathe Goliath 660 is a modern machine, according to the current status of technics. Due to the high operator convenience is this machine ideal for locksmithery, tool production, manufacture and individual construction.


Distance between centers

2000 mm

Center height

330 mm

Swing over bed


660 mm

Swing over gap

870 mm

Swing over cross slide

420 mm

Spindle bore

105 mm

Taper at spindle bore

DIN 55029, D1- 8

Speed range

(16) 36 - 1600 rpm

Longitudinal feed

(65) 0,063 - 2,52 mm/rev.

Cross feed

(65) 0,027 - 1,07 mm/rev.

Metric thread

(22) 1 - 14 mm

Inch thrad

(26) 2 - 28 Gg/1"

Diameter of tailstock sleeve

75 mm

Taper of tailstock sleeve

MT 5

Motor power

7,5 kW (10,0 HP)

Weight approx.

2650 / 2850 / 3050 kg




Machine dimension

Width

Depth

Height

Goliath 660 x 1500

3000 mm

1100 mm

1500 mm

Goliath 660 x 2000

3500 mm

1100 mm

1500 mm

Goliath 660 x 3000

4500 mm

1100 mm

1500 mm

  • Multifunctional applications at the general engine building, manufacturing, individual construction,...
  • Central, manageable coupling of feeds and threads with lead screw and feed rod
  • Prism bed out of cast iron, inductive hardened and precise grinded
  • Modern bearing of main spindle with angular ball bearing in precise construction
  • Foot brake for reduction of non-productive time
  • For strengthenig of the bed guideways and for minimization of vibrations, the bed will be equipped with strong ribs
  • Hardened and grinded gears and shafts, even at the feed gear unit
  • Softstart due to the mechanic coupling
  • Serially with longitudinal and cross rapid feed for reduction of the non-productive time
  • Big spindle bore (105 mm) for workpieces with big diameter

Standard accessories:

  • 3-jaw chuck 325 mm
  • 4-jaw independent chuck 400 mm
  • Face plate 630 mm
  • Steady rest
  • Follow rest
  • Coolant device
  • 4-way tool post holder
  • Foot brake
  • Mechanic coupling
  • Rapid feed longitudinal and cross
  • Halogen light
  • Splash guard
  • Thread dial
  • Change gears
  • Shaft with adjustable tappet
  • Tools
