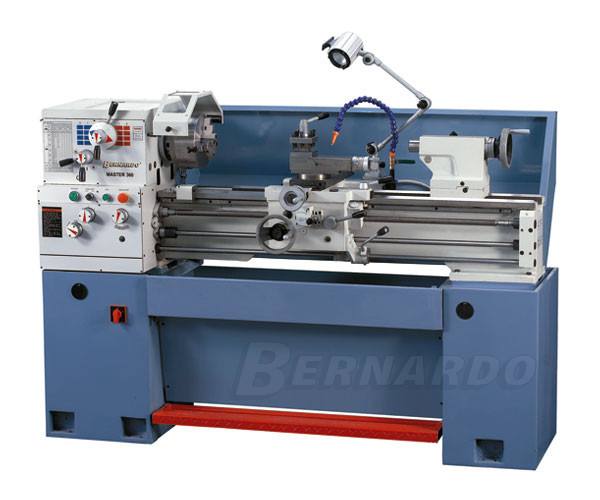

Bernardo Master 360 turning lathe. |
|
The model Master 360 is an enhancement of the since years known Super 180 and satisfy due to the new, modern design. Due to the manageable, solid construction with lead screw and feed rod is this machine optimal for the occupational field, but also for the tool making and workshops.
Distance between centers
|
1000 mm
|
Center height
|
180 mm
|
Swing over bed
|
360 mm
|
Swing over gap
|
500 mm
|
Swing over cross slide
|
200 mm
|
Bed width
|
205 mm
|
Spindle bore
|
38 mm
|
Taper at spindle bore
|
DIN 55029, D1-4
|
Speed range
|
(16) 45 - 1800 rpm
|
Longitudinal feed
|
(42) 0,043 - 0,653 mm/rev.
|
Cross feed
|
(42) 0,015 - 0,220 mm/rev.
|
Metric thread
|
(39) 0,4 - 7 mm
|
Inch thread
|
(28) 4 - 56 Gg/1"
|
Diameter of tailstock sleeve
|
45 mm
|
Travel of tailstock sleeve
|
120 mm
|
Taper of tailstock sleeve
|
MT 3
|
Motor power output S1 100%
|
2,2 kW
|
Motor power input S6 40% |
3,0 kW |
Machine dimension (W x D x H) |
1930 x 750 x 1450 mm |
Weight approx.
|
750 kg
|
- Elektromechanic foot brake for reduction of the non-productive time
- One-hand clamping of the tailstock, displaceable for taper turning
- Very manageable, solid machine with lead screw and feed rod
- Hardened and grindes gears, even at the feed gear unit
- Prism bed out of cast iron, inductive hardened and grinded
- The speed and feed adjustment is easy arranged, smooth and precise switchable
- Tailstock can be displaced +/- 5 mm for taper turning
- Ideal for technical school, repair shops and occupational field
- Optimal price-performance ratio, modern design
- Space-saving assembling due to extractable chip tray to the front
- Removeable bridge for processing of big workpieces
- Modern bearing of main spindle with angular ball bearing in precise construction
Standard accessories:
- 3-jaw chuck 200 mm
- Independent chuck 200 mm
- Steady rest
- Follow rest
- Coolant device
- Face plate 300 mm
- 4-way tool post holder
- Micrometer stop
- Thread dial
- Halogen light
- Morse taper drill sleeve
- Change gears
- Foot brake
- Tools
|
|
|
|
