Bernardo Titan 560 x 2000 V-constant manufacturing lathe
|

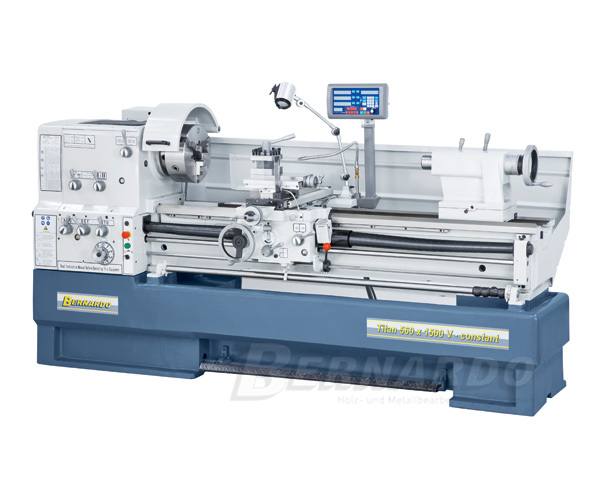

The Titan 560 x 2000 V-constant is a state-of-the-art, revolutionary manufacturing lathe. The wide range of standard equipment, such as the 3-jaw chuck, steady and follow rest, change gears and the 3-axis digital readout, make this model extremly versatile. Furthermore, zhe machis is equipped with additional features like the constant cutting speed, allowing precise machining even at inconsistent diameter of workpieces.
Distance between centers
|
2000 mm
|
Center height
|
280 mm
|
Swing over bed
|
560 mm
|
Swing over gap
|
785 mm
|
Swing over cross slide
|
350 mm
|
Bed width |
350 mm |
Spindle bore |
80 mm
|
Taper of spindle bore
|
DIN 55029, D1 - 8
|
Speed range, 2 Steps
|
25 - 200 / 200 - 1600 rpm
|
Longitudinal feed
|
(35) 0,059 - 1,646 mm/rev.
|
Cross feed
|
(35) 0,020 - 0,573 mm/rev.
|
Metric thread
|
(47) 0,2 - 14 mm
|
Cross feed
|
(60) 2 - 112 Gg/1"
|
Diameter of tailstock sleeve
|
75 mm
|
Travel of tailstock sleeve
|
180 mm
|
Taper of tailstock sleeve
|
MK 5
|
Motor power
|
7,5 kW (10,0 HP)
|
Machine dimensions (W x D x H) |
3340 x 1150 x 1460 mm |
Weight approx.
|
2720 kg
|
- Constant cutting speed when face turning, spindle speed automatically adjusts to diameter of workpieces
- Constant speed allows top finishes when face turning
- Removable bridge allows machining of oversize workpieces
- Central, practical feed settings, tapping with leadscrew and feed rod
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Machine bed, cast in one piece, is rigid and eliminates vibrations, allowing accurate turning
- Various areas of application, such as general engineering, production, single part manufacturing etc.
- Tailstock can be repositioned for taper turning
- Central lubrication of apron
Standard accessories:
- 3-axis digital readout
- 3-jaw chuck DK11-315 mm / D8
- 4 jaw independent chuck K72-400 mm / D8
- Face plate 450 mm
- Steady rest - Passage up to 180 mm
- Follow rest - Passage up to 120 mm
- Initial filling with Shell Tellus 46
- 2 dead center
- Spindle brake
- Frequency inverter
- Coolant device
- 4-way tool post holder
- Halogen light
- Change gears
- Thread dial
- Splash guard
- Tools
Optional accessories:
- Bernardo Standard-3-jaw chuck DK11-D, DIN 55029, DK11-250/D8, cast iron (Art.Nr.:21-0787)
- Bernardo Standard-4-jaw chuck DK12-D, DIN 55029, DK12-315/D8, cast iron (Art.Nr.:21-0839)
- Soft solid jaws DSJ-DK11-250 (Art.Nr.:21-0855)
- Soft solid jaws DSJ-DK11-315 (Art.Nr.:21-0856)
- Soft solid jaws DSJ-DK12-315 (Art.Nr.:21-0869)
- Soft top jaws DSTJ-DK11-315 (Art.Nr.:21-0880)
- Hard master jaws DMJ-DK11-315 (Art.Nr.:21-0902)
- Flange FL according DIN 55029 250 / D8 semi machined, cast iron (Art.Nr.:21-4059)
- Flange FL according DIN 55029 315 / D8 semi machined, cast iron (Art.Nr.:21-4061)
- Economy live center Typ PC - MT 5 (Art.Nr.:22-1004)
- Medium load type live center NCA - MT 5 (Art.Nr.:22-1011)
- Medium duty live center with 7 interchangable tips SMA - MT 5 (Art.Nr.:22-1043)
- Ball nose live center MT 5 / 150 mm (Art.Nr.:22-1065)
- 5C fixture (Art.Nr.:22-1090)
- 5C fixture with direct mount D1-8 (Art.Nr.:22-1094)
- 5C round hole collets set, 3 - 26 mm, 24 pcs. (Art.Nr.:22-1097)
- 40 pos. tool post & holder set System Multifix size C, incl. 4 tips (Art.Nr.:23-1003)
- Costs of assembly Multifix size B, C and D ** (Art.Nr.:23-1091)
- Indexable carbide turning tool set, 20 mm, 5 pcs. (Art.Nr.:44-2023)
- 6 pcs. turning tools set incl. 1 pc. boring bar, 20 mm (Art.Nr.:44-2054)
- Multipurpose turning tool set, 20 mm, 7 pcs., set E (Art.Nr.:44-3088)
- Machine mount NE 120 (Art.Nr.:53-2011)
- Bernardo coolant fluid TURN for lathes, 5 l canister (Art.Nr.:54-1202)
|
