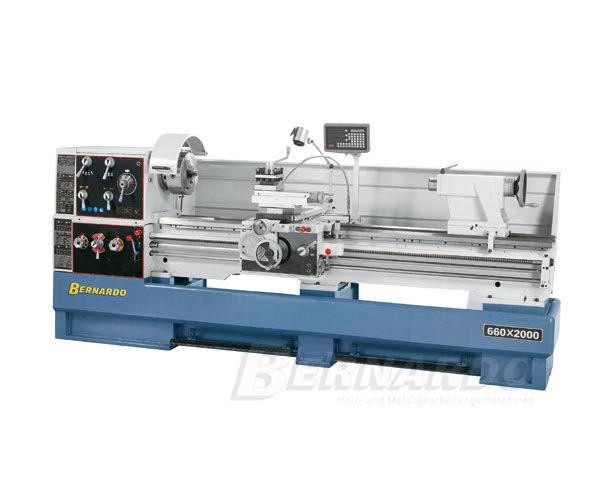

Bernardo turning lathe digital - Titan 660 x 1500
|
The turning lathe Titan 660 x 1500 meets the standards of modern technology. The high user-friendliness (rapid feed, mechanic coupling, digital readout and high power range) makes it very popular for locksmiths, tool manufacturers, and single part production.
Distance between centers
|
1500 mm
|
Center height
|
330 mm
|
Swing over bed
|
660 mm
|
Swing over gap
|
900 mm
|
Swing over cross slide |
460 mm
|
Bed width
|
400 mm
|
Spindle bore |
105 mm
|
Spindle nose fixture
|
DIN 55029, D1-8
|
Speed range
|
(16) 25 - 1600 rpm
|
Longitudinal feed
|
(25) 0,044 - 1,48 mm/rev
|
Cross feed
|
(25) 0,022 - 0,740 mm/rev
|
Metric thread
|
(54) 0,45 - 120 mm
|
Inch thread |
(54) 7/16 - 80 threads/1"
|
Diameter of tailstock sleeve
|
90 mm
|
Travel of tailstock sleeve
|
235 mm
|
Taper of tailstock sleeve
|
MT 5
|
Motor power
|
7,5 kW (10,0 HP)
|
Machine dimensions (W x D x H)
|
3130 x 1200 x 1700 mm
|
Weight approx.
|
2700 kg
|
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
- Grey cast-iron machine bed, inductive hardened and polished
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Hardened, polished gears and shafts, even in feed unit
- Complete with longitudinal and cross rapid feed to reduce downtime
- Large spindle bore (105 mm) allows processing of workpieces with a large diameter
- Mechanic coupling allows soft start
- Mechanic foot brake keeps downtime to a minimum
- High performance even at face turning
- Machine bed guide ways are reinforced for higher rigidity and fewer vibrations
Standard accessories:
- 3-jaw chuck DK11-315 mm / D8
- Independent chuck K72-400m / D8
- Face plate 450 mm
- 3-axis digital readout
- Steady rest - Passage up to 180 mm
- Follow rest - Passage up to 120 mm
- 2 dead center
- Magnetic brake
- Spindle brake
- Initial filling with Shell Tellus 46
- Rapid feed longitudinal and cross
- Coolant device
- 4-way tool post holder
- Halogen light
- Change gears
- Splash guard
- Tools
Optional accessories:
- Bernardo Standard-3-jaw chuck DK11-D, DIN 55029, DK11-400/D8, cast iron (Art.Nr.:21-0791)
- Bernardo Standard-4-jaw chuck DK12-D, DIN 55029, DK12-315/D8, cast iron (Art.Nr.:21-0839)
- Soft solid jaws DSJ-DK11-315 (Art.Nr.:21-0855)
- Soft solid jaws DSJ-DK11-400 (Art.Nr.:21-0857)
- Soft solid jaws DSJ-DK12-315 (Art.Nr.:21-0869)
- Flange FL according DIN 55029 315 / D8 semi machined, cast iron (Art.Nr.:21-4061)
- Flange FL according DIN 55029 400 / D8 semi machined, cast iron (Art.Nr.:21-4063)
- Economy live center Typ PC - MT 5 (Art.Nr.:22-1004)
- Medium load type live center NCA - MT 5 (Art.Nr.:22-1011)
- Medium duty live center with 7 interchangable tips SMA - MT 5 (Art.Nr.:22-1043)
- Ball nose live center MT 5 / 150 mm (Art.Nr.:22-1065)
- 5C fixture (Art.Nr.:22-1090)
- 5C fixture with direct mount D1-8 (Art.Nr.:22-1094)
- 5C round hole collets set, 3 - 26 mm, 24 pcs. (Art.Nr.:22-1097)
- 40 pos. tool post & holder set System Multifix size C, incl. 4 tips (Art.Nr.:23-1003)
- Costs of assembly Multifix size B, C and D ** (Art.Nr.:23-1091)
- Keyless drill chuck 1 - 16 mm / B 16 (Art.Nr.:24-1082)
- Indexable carbide turning tool set, 20 mm, 5 pcs. (Art.Nr.:44-2023)
- 6 pcs. turning tools set incl. 1 pc. boring bar, 20 mm (Art.Nr.:44-2054)
- Multipurpose turning tool set, 20 mm, 7 pcs., set E (Art.Nr.:44-3088)
- Machine mount NE 120 (Art.Nr.:53-2011)
- Bernardo coolant fluid TURN for lathes, 5 l canister (Art.Nr.:54-1202)
|
|
