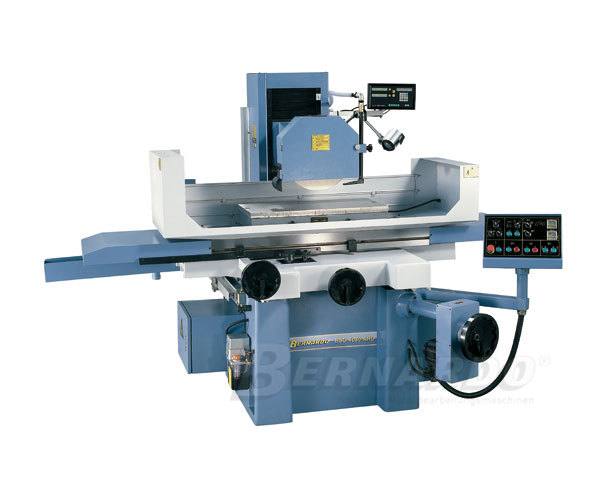

» » Bernardo BSG 2550 AHD surface grinding machine
|
|
Bernardo BSG 2550 AHD surface grinding machine. |
|
Tischaufspannfläche
|
254 x 508 mm
|
T-Nuten Anzahl / Breite
|
3 / 14 mm
|
Elektro-Magnetspannplatte
|
250 x 500 mm
|
Max. Verfahrweg, längs
|
640 mm
|
Max. Verfahrweg, quer
|
300 mm
|
Abstand Spindelmitte / Tisch max.
|
450 mm
|
Max. Werkstückgewicht*
|
180 kg
|
Schleifscheibe
|
200 x 20 x 32 mm
|
Tischgeschwindigkeit, hydraulisch
|
7 - 23 m/min
|
Querverstellung
|
|
Automatische Zustellung, quer
|
0,1 - 8 mm/Hub
|
Eilgang, quer
|
990 mm/min
|
Zustellung quer pro Handradumdrehung
|
5 mm
|
Skalenteilung am Handrad
|
0,02 mm
|
Vertikalzustellung
|
|
Automatische Zustellung, vertikal
|
0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
|
Eilgang, vertikal
|
460 mm/min
|
Zustellung vertikal pro Handradumdrehung
|
1 mm
|
Skalenteilung am Handrad
|
0,005 mm
|
Schleifspindelmotor
|
2,2 kW
|
Spindeldrehzahl
|
1450 U/min
|
Hydraulikpumpenmotor
|
2,2 kW
|
Quervorschubmotor
|
0,04 kW
|
Vertikalvorschubmotor
|
0,5 kW
|
Länge
|
2000 mm
|
Breite
|
2100 mm
|
Höhe
|
1675 mm
|
Gewicht ca.
|
1750 kg
|
* mit Magnetspannplatte
- Panasonic Servomotor
- Siemens PLC
Lieferumfang:
- Schleifscheibe
- Scheibenflansch
- Halogenlampe
- Magnetspannplatte
- Auswuchtstand
- Auswuchtwelle
- Entmagnetisierungseinrichtung
- Digitalanzeige
- Kühlmitteleinrichtung
- Bedienwerkzeug
- Abziehdiamant
- Füße
- Bedienungsanleitung
|
|
|
|
