Circular sawbench ts 2500 ci
Artikelnummer: 5301 0909; 5301 0910

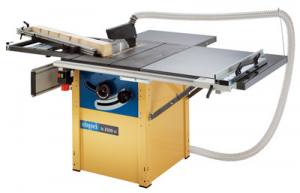

Economic sawing excellence – the scheppach ts 2500 ci circular sawbench with cast iron table.
Sawing efficiency demands accuracy and stability. Both are incorporated into the ts 2500 ci circular sawbench which now comes with cast iron saw table as standard.
With an impressive 87 mm depth of cut – backed up with a 5.2 HP motor (3.5 HP single phase) and a constant cutting speed of 54 m/second for splinter free cutting, sawing performance doesn’t come any better than this from aneconomy range sawbench.
Table slots to both left and right of the sawblade accept the mitre gauge which gives 0–60 degree settings. Dust extraction from the crown guard as well as the main sawdust chute is included as part of the standard equipment, thus meeting all the demands of those who are as concerned with health issues as they are about cutting performance.
Table width and length extensions plus a choice of two sliding carriages are available as optional attachments allowing a cutting capacity of up to 800 mm or 1,400 mm in front of the sawblade. When fitted with the folding table width extension, an 1,100 mm cutting capacity to the right of the sawblade can be achieved.
Technical data
L/W/H mm
|
1,100/680/1,110
|
Table size mm
|
800 x 680
|
Sliding carriage mm
|
420 x 670
|
- Sawblade Ø mm/teeth
|
270/24
|
Height adjustment mm
|
0-87
|
Tilting range °
|
45
|
Rpm
|
3,800
|
Cutting speed m/sec
|
54
|
Angle fence °
|
2x60
|
Suction connector Ø mm
|
100
|
Weight approx. kg
|
120
|
Cutting details
Cutting width or depth with
|
|
- ripping fence mm
|
405
|
- table width extn. mm
|
1,100
|
- angle fence mm
|
260
|
- sliding carriage mm
|
800/1,400
|
Cutting depth at 90° mm
|
87
|
Cutting depth at 45° mm
|
64
|
Motor
|
400V/50 Hz
|
Input kW (HP)
|
3.8 (5.2)
|
Output kW (HP)
|
2.9 (4.0)
|
Rpm
|
2,690
|
Order No.
|
5301 0910
|
