Metallkraft Manually supported sheet metal shear FTBS 1050-12 M


4.364,74 EURplus 16 % tax, excl. Shipping costs



Product No.:
375 3012
Shippingtime:
Weight per unit:
2148 kg

Metallkraft Manually supported sheet metal shear FTBS 1050-12 M



·  Solid and robust welding construction
·  Appropriate to cut metals, paper and other material
·  Due to the foot control both hands are free to supply the material
·  Largely dimensioned viewing window made of Plexiglas
·  High quality cutter made of steel with sliding block guide
·  Easy adjustment of the cutter by 8 screws
·  Rubberized material holding down clamp to prevent the workpiece from slipping
·  The holding down clamp is at the same time a finger guard, maximum distance from the holding down clamp to the working table is 5 mm, providing highest possible safety
·  Adjustable angular stop and millimetre scale
·  Intersection line illumiation 230 V and Plexiglas plate as standard
·  Optimum price/performance ratio

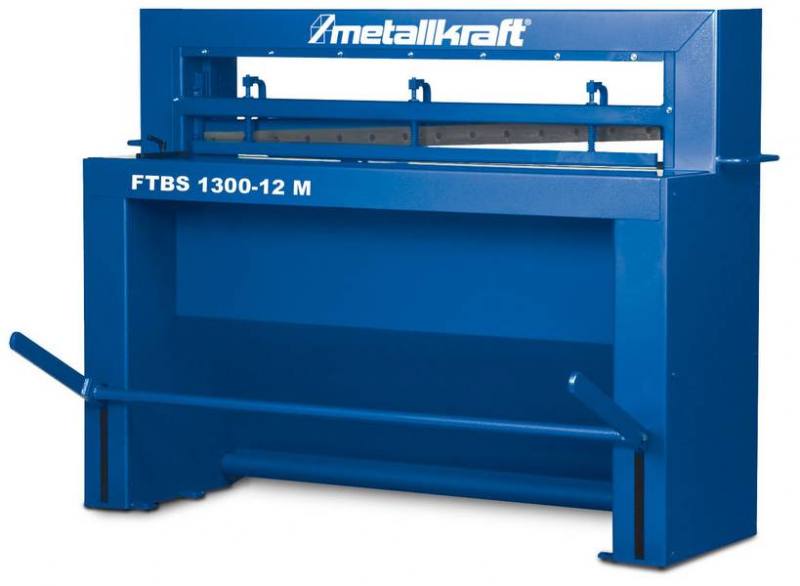

Metallkraft manuell unterstützte Tafelblechschere FTBS 1300-12 M
· serienmäßig mit Schnittlinienbeleuchtung

Metallkraft manuell unterstützte Tafelblechschere FTBS 1300-12 M
· serienmäßig mit
Hinteranschlag


Modell FTBS 1050-12 M
Artikel-Nr. 375 3012

Technische Daten
Arbeitsbreite 1030 mm
Blechstärke 1,25 mm
Schnittwinkel
Hinteranschlag 550 mm
Seitenanschlag 200 mm
Schnitte pro Min. -
Gewicht 148 kg
Abmessung in mm 1380 x 880 x 1300
