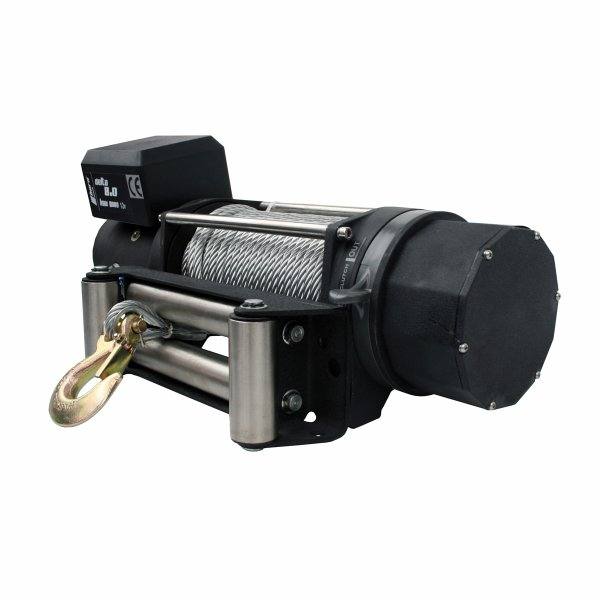

Delta 8.0 winch 3.6 t 12 V

Delta 8.0 winch 3.6 t 12 V

Stainless steel finish - tie bars, clutch handle and roller fairlead are made of stainless steel!

Technical data:

Motor:
Motor power input/output: 5.1/3.6 PS
Motor type: Series Wound (magnetic field is generated electrically)
Maximum power input: 320 Ampere
Voltage: 12 Volt

Gear drive:
3-stage planetary drive
Gear reduction ratio: 210:1

General:
Maximum pull: 3629 kg/8000 lbs
Maximum line speed: 5.5 m/minute (measured without load)
Steel rope (diameter x length): 8.3 mm x 29 m
Drum size (diameter x length): 63 x 227 mm
Overall dimensions (LxWxH): 553 x 175 x 230 mm
Net weight: 34.43 kg/75.91 lbs
Gross weight: 39 kg/85.98 lbs
One-way clutch for the drum so the cable can quickly be unwound by hand.

Accessories included:
Cable remote control
Roller fairlead
Fastening screws
User manual
Hooks

3 years warranty
Warranty only applies to private users, not to professional use, and only if user manual instructions are heeded.

Optionales Zubehör:
Montageplatte (IST8000)
Funkfernbedienung (Typen W002-12V, W002A-12V, W003-12V)

Leistungsdiagramm:

Garantie gilt nur für Privatanwender, nicht für professionellen Gebrauch und nur unter Einhaltung der Bedienungsanleitung.
