» » » Bernardo HBS 600 N Wood bandsaw
 |
| |

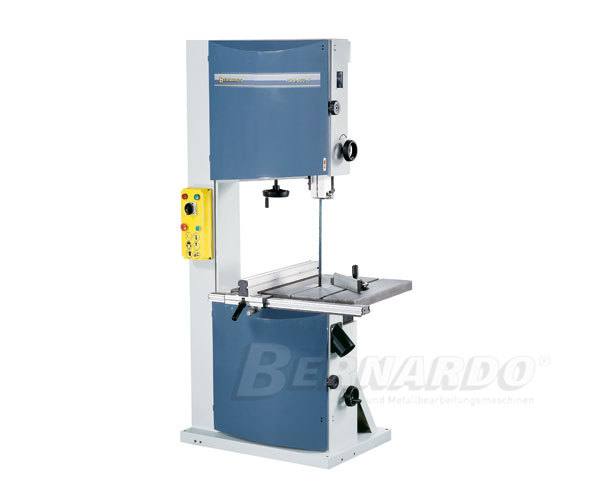

Bernardo HBS 600 N Wood bandsaw
|
Properties
- Dynamically balanced flywheels for smooth run
- Cutting height adjustment via gear rack with mm-scale using a handwheel
- Working table with grounded surface and T-slot for the mitre fence
- Easy bandsaw blade change using the quick clamping lever on the backside
- Precise guided aluminium rip fence, removable on each position
- Inspection window on the front for checking the run of the bandsaw blade
- Generously dimensioned cast iron table, tiltable from -5° to +45°
- High-power drive motor allow handling of bigger workpieces
- Professional wooden bandsaw – high own weight for maximum smoothness
Standard accessories
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Cast iron flywheels
- Precision-3-roller bandsaw blade guiding
- Motor incl. brake
- Push stick
- Tools
Technical specifications
|
Cutting width
|
600 mm
|
|
Cutting height
|
435 mm
|
|
Blade dimension
|
4590 x 25 x 0,6 - 3 TPI
|
|
Blade width
|
19 - 38 mm
|
|
Cutting speed
|
1560 m/min
|
|
Table size
|
610 x 700 mm
|
|
Table height
|
910 mm
|
|
Tilting table
|
-5° to 45°
|
|
Dust extraction outlet
|
2x 100 mm
|
|
Motor power output S1 100%
|
4,0 kW (5,5 HP)
|
|
Motor power input S6 40%
|
5,5 kW (7,5 HP)
|
|
Voltage
|
400 V
|
|
Machine dimension (W x D x H)
|
1230 x 1000 x 2120 mm
|
|
Weight approx.
|
330 kg
|
|
| |
|
|
| |
