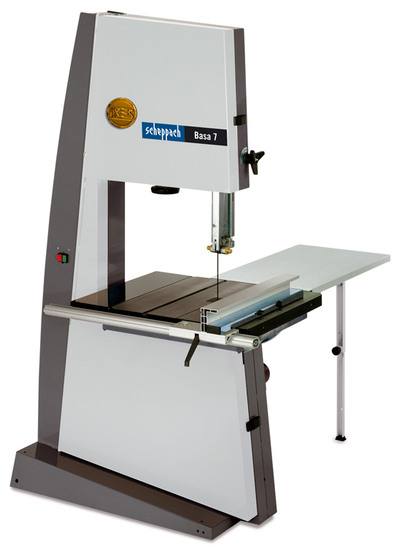

» Scheppach Bandsaw Basa 7 230-240 Volt
Our new 24“ Industrial Bandsaw is loaded with features not found in saws costing much more. Thanks to their outstanding design features, working with an scheppach 24“ bandsaw becomes so simple and satisfying, even when having to cut complicated shapes with utmost exactness.
Specifications
• 600 mm (24") cast iron wheel
• Cutting speed: 1200 mm per/min for the best possible performance irrespective of the material being cut.
• 400 mm maximum cutting height
• 600 mm cutting width (throat depth)
• Patented table adjustment: -15° to +47°
• Sawblade length / width: 4425 / 6–30 mm
• Table height / size: 900 / 840x640 mm
• Powerful motors (2 versions available)
Additional Features
• Strong, robust, machined cast iron table (can be set and fixed to any angle within its range with one hand)
• Simple rack and pinion action for accurate angle adjustment
• Micro adjustment for rip fence to 1/10th mm accuracy (optional)
• Table length extension for additional support for larger pieces
• Long adjustable rip fence
• Quick and safe blade changing system
• Balanced cast wheels, rubber coated, running on twin bearings
• Precision triple roller guides, fitted above and below the table
• Full steel construction machine frame
• 4“ (100 mm) main dust port
Order Details
Bandsaw Basa 7 230–240V (2,3 kW / 3,1 H.P)
Order No. 7325 0917
Scheppach © Bandsaw Basa 7
|
|
Technische Daten der Bandsäge
L/B/H mm
|
735/1330/2060
|
Tischgröße mm
|
840 x 640
|
Tischverstellung °
|
-15 bis +47
|
Bandrad Ø mm
|
600
|
Sägebandlänge/-breite mm
|
4425/6-30
|
Schnittgeschwindigkeit m/min.
|
1200
|
Durchlasshöhe/-breite mm
|
400/590
|
Absaugstutzen Ø mm
|
100
|
Gewicht ca. kg
|
295
|
Motorausrüstung der Bandsäge
|
220-240 V/50 Hz
|
Aufnahmeleistung kW (PS)
|
2,8 (3,8)
|
Abgabeleistung kW (PS)
|
2,0 (2,7)
|
Drehzahl 1/min
|
2600
|
Bestell-Nr.
|
7325 0917
|
Scheppach © Bandsäge Basa 7
|
|
|
|
