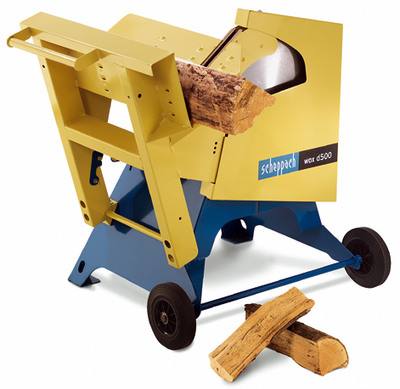

Swivel log saw wox d500
Quick working, high efficiency, pleasant operating height – swivel log saw wox d500.
The winter will loose all its severity in your eyes, if you provide your household with this new swivel log saw. With its powerful motor (single- or three-phase) you’ll get a really high cutting performance. The single phase version is equipped with phase selector. The automatic thermal circuit breaker will switch off the machine before overloading.
The wox d500 saws with little effort firewood with transection 170 x 300 mm and divides it in handy pieces.
This manoeuvrable log saw will easily get the hard work done. With its stable welded angle-iron frame and wheels as standard equipment our wox d500 is always ready for large-scale operations.
|
|
Technical data
L/W/H mm
|
880/900/1,000
|
Jig support rest mm
|
660
|
Saw blade dia
|
500 mm/teeth 56 WZ
|
Trough angle
|
70°
|
Weight approx. kg
|
79
|
Cutting details
Cutting depth jig mm
|
170
|
Split wood dia. mm
|
300
|
Motor
|
380-420 V/50 Hz
|
Input kW (HP)
|
4.2 (5.7)
|
Rpm
|
2,800
|
Order No.
|
1532 0902
|
Scheppach © Swivel log saw wox d500
|
|
|
|
