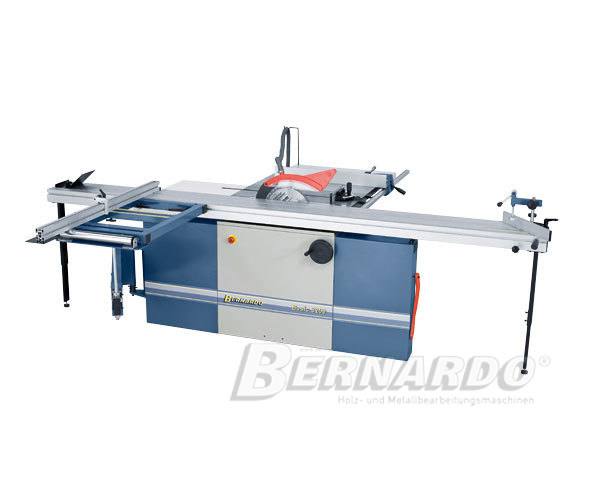

Bernardo sliding table saw Basic 3200

The sliding table saws of the Basics-series feature a tiltable saw blade and come complete with a scoring unit to meet the high demands of professional users. Sophisticated technical aspects such as the high user comfort, powerful drive and the smoothly running sliding table make these models stand out.

• Solid square table helps support large and heavy sheet material
• Extractable telescopic fence (up to 2260 mm), mountable at front or rear of square table
• Powerful drive motor guarantees optimal cutting capacity even at continuous operation
• Mitre fence and downholder can be moved along the entire sliding table length
• Complete with table extensions and enlargement for better support of large sheet material
• Solid saw unit guarantees accurate work free from vibrations
• Aluminium sliding table features hardened guide rails
• Machine body consists of torsion-free combination of steel and grey cast-iron
• Large grey cast-iron table, designed with top precision and polished fi nish
• Solid parallel fence with magnifying glass to maximize user comfort
• Handwheel and scale allows for sawblade tilt of up to 45º

Standard accessories:

• Carbide sawblade 315 x 3,0 x 30 mm / 40T
• 2-pieces scoring sawblade 2-100 x 20 mm / 24T
• Protective cover with dust extraction outlet
• Connector hose with Y-piece
• Mitre fence with eccentric holder
• Mitre fence
• End stop
• Table extension
• Table enlargement
• Extractable telescopic fence
• Stop with fi ne adjustment
• Square table with roll
• Push stick
• Tools

Optional accessories:

• Sawblades diam. 315 mm, 3 pcs.  (Art.Nr.:17-1653)
• Scoring sawblade 2-100 x 20 mm (Art.Nr.:17-1604)
• Dust collector DC 400 / 400 V (Art.Nr.:12-2060)
• PU-tube diam. 100 mm (6 m) (Art.Nr.:12-1077)
• Automatic start-up system ALV 10 (Art.Nr.:12-1150)
• Digital angle finder Level Box (Art.Nr.:31-1041)
