Scheppach Panel sizing saw Forsa 6 220V


6.217,45 EURplus tax excl. Shipping costs



Product No.:
SP 5472 0906
Shippingtime:
Weight per unit:
350 kg

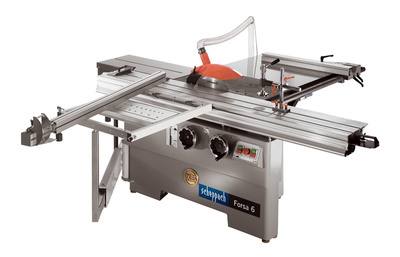

Panel sizing saw Forsa 6, max. table stroke 2100 mm

Ever dreamt of owning a panel saw, but never had the space?
The Forsa 6 is the perfect answer. Loaded with all the features of our Forsa 8 & 9 it retains the power & accuracy in a more compact design.

Specifications
• Table stroke / Max. cross-cut travel: 2,100 mm
• Max wide rip capacity: 1,150 mm
• Max. width on crosscut support - flip stop (left of sawblade): 2,500 mm
• Saw blade dia./bore: 315/30 mm
• Max depth of cut at 90°: 107 mm
• Max depth of cut at 45°: 75 mm
• Cutting speed of 66 m/second
• Tilting range: 90° - 45°
• Powerful motors
   (2 versions available)


Additional features
• Patented „Cast Iron Trunnion“
• Sliding table of anodised aluminium travelling on hardened prismatic bearings
• Blade tilts 45° for bevel cutting
• Sliding cross table with telescopic support arm on bearings. Strong outrigger table for loading panel smoothly. Can be effortlessly adjusted from -45° to +45°
• Poly-V-belt drive mechanism guarantees maximum power transmission
• Includes 12“ (315 mm) TCT blade
• Cast iron fence
• Heavily cast and precision ground cast-iron main table
• 4“ (100 mm) main dust port


Scoring attachment
• Saw blade dia./bore:  120/20 mm
• Supplied with splitscoring blade – adjustable from 2.8 – 3.6 mm
• Fully retractable below table
• Tiltable with main sawblade from 90° to 45°
• Separate height adjustment from 0 – 4 mm
• Independently powered by  seperate 1.1 HP motor

Order details
Panel Saw Forsa 6
230V (3.0 kW / 4.0 H.P)
Order No. 5472 0906
