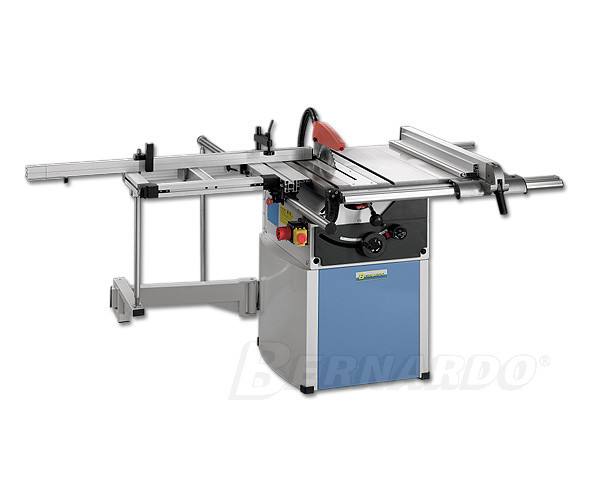

Bernardo TK 250 F 230 V table saw
|
|
The high-power circular saw TK 250 F is equipped with a sliding- and square table. The large standard equipment offers an optimal balance between price and efficiency for the professional user.
Table dimension |
800 x 840 mm |
Sliding table dimension |
410 x 710 mm |
Sliding table stroke |
1230 mm |
Max. saw blade diam. |
254 mm |
Max. cutting height 90° / 45° |
82 / 54 mm |
Gage length of saw blade |
225 mm |
Cutting width on rip fence |
620 mm |
Main saw blade speed |
4000 rpm |
Dust extractor oulet |
100 mm |
Motor power |
2,1 kW (2,85 HP) / 400 V |
Weight approx. |
170 kg |
- Standard with a user friendly swivel arm sliding table with a supporting surface of 410 x 710 mm
- Extractable telescopic fence (up to 2000 mm) can be mounted on the front or rear side of the square table, steplessly tiltable from 90° to 45°
- Including table extension on the right side for better application of big workpieces
- Solid and easily adjustable saw unit, tiltable from 90° to 45°
- Increased operating comfort due to the aluminium fence with magnifier
- Massive cast iron table with T-slots left and right of the saw unit
- The adjustment of the saw unit takes place by ergonomically mounted handwheels on the machine body
- The mitre fence can be guided left and right of the saw unit and is useable for angular cuts up to 45°
|
|
|
