Scheppach Construction saw Structo 5 230-240 V / 50 Hz


941,62 EURplus tax excl. Shipping costs



Product No.:
SP 5646 0901
Shippingtime:
Weight per unit:
110 kg




Construction saw Structo 5

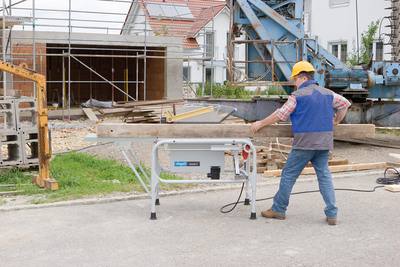

The new heavy-duty site and construction saw copes with the extreme daily requirements of use on construction sites. The pendulum safety guard offers the operator optimum safety, meeting the strictest demands and carrying the approval of the German Professional Association BG. The powerful motor guarantees constant cutting performance. Heavy duty foldaway cross-cut and mitre attachment comes as standard equipment.

scheppach features
• Pendulum safety guard
• Cutting height at 450 mm sawblade Ø: 125 mm
• Cutting height at 500 mm sawblade Ø: 150 mm

Cutting data
• Cutting width with longitudinal fence 370 mm
• Cutting depth in front of sawblade, with cross-cutting gauge, at 450 mm sawblade Ø: 275 mm
• Cutting depth in front of sawblade, with cross-cutting gauge, at 500 mm sawblade Ø: 250 mm

Standard equipment
• Transparent sawblade guard, ensuring an optimum sight onto the cutting line
• Solid, folding tubular base, galvanized and powder-coated
• Large, anti-slipping rubber foot plates
• Fixing devices for fence and assembly tools
• Cross-cutting gauge with integrated wedge-cutting gauge, with maintenance-free, folding tubular guiding with sliding bearings
• Table length extension L 800 x W 400 mm, folding down
• Large jack rings
• Push stick, push handle, tools for sawblade changing
• Phase inverter (400 V)

Technical data
• TCT sawblade with 230 V machines: Ø 450 mm / 36 teeth
• TCT sawblade with 400 V machines: Ø 500 mm / 44 teeth
• Sawblade speed 2800 rpm
• Table size 1000 x 660 mm
• Certificate CE
• Dimensions: L 1860 x W 820 x H 1170 mm
• Weight approx. 110.0 kg

Order information Structo 5

Motorr equipment V / Hz

230-240/50

Input kW (hp)

3,2 (4,4)

Sawblade ø

450 mm

Order no.

5646 0901
