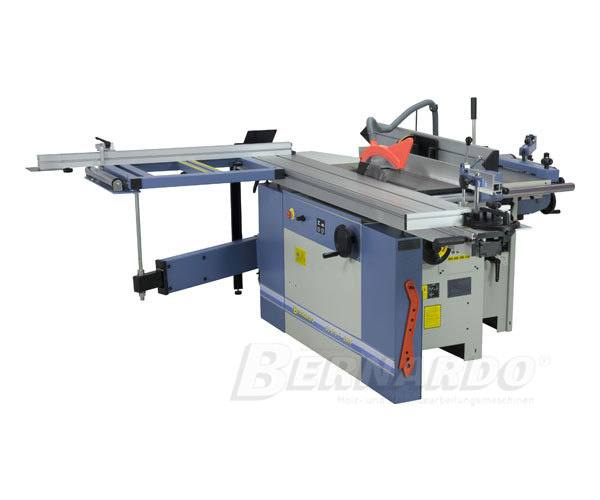

Bernardo CU 310 F - 2000 universal combined machine


6.191,64 EURplus tax excl. Shipping costs



Product No.:
08-1293
EAN:
9009468011345
Shippingtime:
Weight per unit:
565 kg
Bernardo CU 310 F - 2000 universal combined machine

Bernardo CU 310 F - 2000

universal combined machine



Technische Spezifikationen

Planer



Planing width

310 mm

Table length

1390 mm

Table height

850 mm

Shaft rotation speed

4800 rpm

Cutter knives

3 pcs.

Planer shaft diameter

70 mm

Planer fence

1220 x 150 mm

Fence tiltable

90° to 45°

Max. cutting depth

4 mm

Motor power output S1 100%

3,8 kW (5,1 HP)

Motor power input S6 40%

5,3 kW (7,2 HP)

Thicknesser



Table length

540 mm

Working width

305 mm

Working thickness, min/max.

5 - 225 mm

Max. cutting depth

2 mm

Feed speed

6 m/min

Dust extraction outlet

100 mm

Mortising unit



Table size

500 x 200 mm

Westcott drill chuck

0 - 16 mm

Max. drill depth

155 mm

Drill width

285 mm

Height adjustment

140 mm

Dust extraction outlet

100 mm

Circular saw



Table size

830 x 300 mm

Table height

850 mm

Table extension

505 x 300 mm

Square table with roll

830 x 530 mm

Sliding table

2000 x 270 mm

Cutting length

2000 mm

Max. sawblade diameter

315 x 30 mm

Max. cutting height 90° / 45°

100 / 80 mm

Cutting width on rip fence

630 mm

Speed main sawblade

4500 rpm

Speed scoring sawblade

8500 rpm

Scoring sawblade

2-100 x 20 mm

Dust extraction outlet

100 mm

Motor power output S1 100%

3,8 kW (5,1 HP)

Motor power input S6 40%

5,3 kW (7,2 HP)

Spindle moulder



Spindle diameter

30 mm

Height adjustment

100 mm

Table opening

80 / 100 / 140 / 190 mm

Working length of spindle

100 mm

Max. tool diameter



- for profiling

180 mm

- for tenoning

200 mm

Spindle speed

1800 / 3000 / 6000 / 9000 rpm

Motor power output S1 100%

2,8 kW (3,8 HP)

Motor power input S6 40%

3,9 kW (5,3 HP)

Voltage

400 V

Machine dimension (W x D x H)

2000 x 2690 x 1250 mm

Weight approx.

565 kg



Features

  • Powerful drive motors guarantee optimal results even at continuous operation
  • Solid square table features roller for processing of heavy and oversize sheet material
  • Machine body consists of a torsion-free, steel and grey cast-iron construction
  • Extractable telescopic fence can be mounted at front or rear of square table
  • Tiltable planer fence (90º to 45º) features generous surface
  • Electronic speed display with LED when using spindle moulder
  • Complete with mortising unit (16 mm capacity)
  • Robust moulding fence with anodized fence rails
  • Dynamically balanced moulder spindle for precise running
  • Planer unit with precisely bedded 3-knife cutterblock



Standard accessories:

  • Cutter knives 310 x 25 x 3 mm
  • Thicknesser table extension with roll
  • Mortising unit
  • Westcott drill chuck 0 - 16 mm
  • Eccentric holder
  • 4-size rotor group (16 / 20 / 22 / 25 mm)
  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • Scoring sawblade 2-100 x 20 mm / 24T
  • Height adjustment of milling spindle with magnifying glass
  • Protective cover with dust extraction outlet and tube
  • Mitre fence with eccentric holder
  • End stop
  • Table extension
  • Telescopic fence with stop
  • Square table with roll
  • Moulding fence
  • Sanding sleeve diam. 75 mm
  • Spindle with left and right turning
  • LED speed indication
  • Push stick
  • Tools



Optional accessories:

  • Planer knives HSS 310 x 25 x 3 mm, price per pc. (Art. no.: 15-1003)
  • Scoring sawblade 2-100 x 20 mm (Art. no.: 17-1604)
  • Universal cutter head set 100 x 40 x 30 mm (Art. no.: 16-2349)
  • Mortising bit set 6 pcs. counterclockwise, 13 mm shaft (Art. no.: 16-2003)
  • Dust collector DC 400 / 230 V (Art. no.: 12-2055)
  • Dust collector DC 400 / 400 V (Art. no.: 12-2060)
  • Automatic start-up system ALV 10 (Art. no.: 12-1150)
  • PVC-tube diam. 100 mm (4 m) (Art. no.: 12-1069)
  • PU-tube diam. 100 mm (6 m) (Art. no.: 12-1077)
  • Carriage (Art. no.: 56-1072)





























































* Ohne Vorritzer
