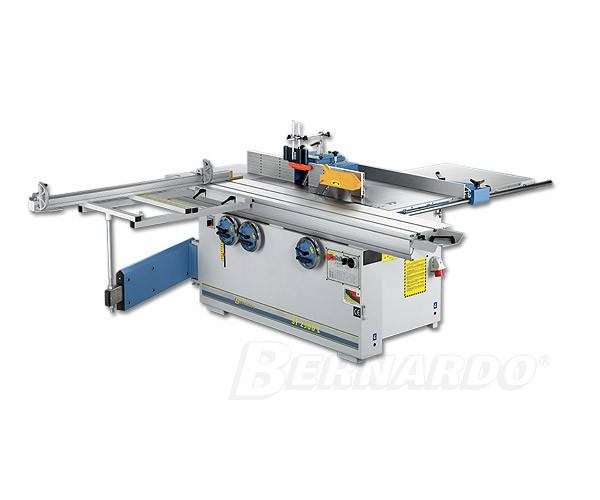

Bernardo SF 2300 L combined sliding table saw and spindle moulder


7.965,96 EURplus tax excl. Shipping costs



Product No.:
SF 2300 L
Shippingtime:
Weight per unit:
650 kg
Bernardo SF 2300 L combined sliding table saw and spindle moulder

Bernardo SF 2300 L combined sliding table saw and spindle moulder

Diese mit zwei unabhängigen Motoren und den modernsten Vorrichtungen ausgestattete Kombimaschine bietet durch die großzügige Serienausstattung und das reichhaltige Angebot an Sonderzubehör außergewöhnliche Leistungen und ein Maximum an Einsatzmöglichkeiten.
Circular saw
Table dimension 1200 x 500 mm
Sliding table dimension 2300 x 350 mm
Sliding table stroke* 2600 mm
Max. saw blade diam. 315 mm
Max. cutting height 90° / 45°
with saw blade 315 mm 103 / 72 mm
with saw blade 250 mm 70 / 49 mm
Cutting width on rip fence 950 mm
Main saw blade speed 4000 rpm
Dust extractor outlet 120 mm
Motor power 3,0 kW (4,0 HP)
Scoring unit (optional)
Scoring saw speed 8000 rpm
Scoring saw blade 120 mm
Spindle moulder
Spindle diameter 30 mm
Table opening 190 mm
Tilting spindle +5° to -5°
Spindle length 125 mm
Max. tool diameter
- for moulding 250 mm
- for tenoning 300 mm
Spindle speeds 1400 / 3500 / 6000 / 8000 rpm
Motor power 3,0 kW (4,0 HP)
Weight approx. 650 kg
* without scoring unit
  •     Solid squaring table for machining of big and heavy plates without additional help
  • Spindle and saw blade can be lowered completely
  • VARIO-moulding fence "Model 250" with anodised guides
  • Rip fence with micrometric fine adjustment
  • Tilting spindle to the backside
  • Anodised aluminium carriage with hardened steel guides
  • Telescopic fence 1500 mm with 2 stops serially
  • Including table extension for cutting width up to 950 mm
  • Tilting of saw blade up to 45° by scale, using the handwheel



Further optional equipment:

  • scoring unit
  • scoring unit with independent motor
  • scoring saw blade
  • stop
  • table broadening for forming table
  • cutting width on rip fence 1250 mm
  • suction pipe with hose
  • clockwise and counter-clockwise rotating spindle
  • motor power (2 motors) 4,0 kW - 3 x 400 V / 50 Hz
