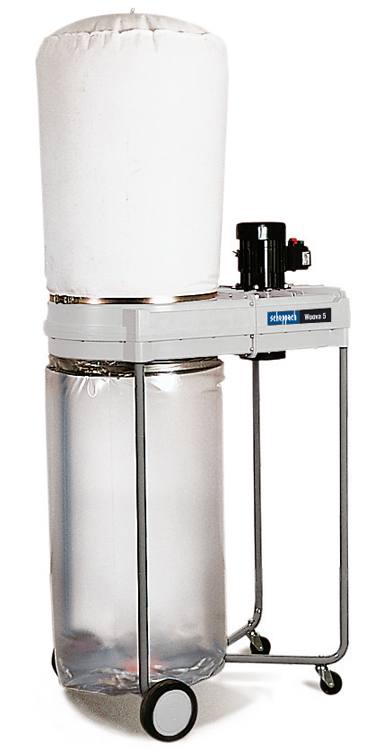

» Scheppach Extractor Woova 5 230-240 Volt
|
Extractor Woova 5
Want the ultimate dust collector in your shop? Then this powerful dust collector is just what you need. This is the perfect dust collector for production workshops requiring to duct multiple to a single collector where workshop space is at a premium. The suction performance of a scheppach Extractor will absolutely delight you.
Specifications
• Airflow: 3,000 m³/h
• Filter area: 2.2 m²
• Bag capacity: 175 litre
• Hose diameter: 160 mm
• Tripple hose diameter (optional) 140/100/100 mm
• Noise level 86 db (A)
• Powerful motors (2 version available)
• Bag filtration rating
• Height with bag inflated: 2,090 mm
Additional Features
• 3,000 m³/h air capacity
• 175 litres of wast capacity
• Highly flexible transparent hose
• Comfortable switch control positioning
• Two large wheels plus two castors facilitates easy movement and positioning
• Triple intake connection to the main hose makes it suitable for working with up to three machines simultaneously
• Optional filter unit increases the suction performance via it's larger filter area of 9.5 m² and is effective in filtering out fine dust particles
• Industrial grate motor intended for continuous workshop use
Order Details
Extractor Woova 5
230-240 V (2.2 kW / 3.0 H.P)
Order No. 7524 0903
Scheppach © Extractor Woova 5
|
| |
|
Technische Daten
|
L/B/H mm
|
1090/580/2090
|
|
Luftleistung m³/h
|
3000
|
|
Filterfläche m²
|
2,2
|
|
Füllmenge l
|
175
|
|
Schlauchanschluss Ø mm
|
160
|
|
Gewicht ca. kg
|
40
|
Motorausrüstung
| |
230-240 V/50 Hz
|
|
Aufnahmeleistung kW (PS)
|
2,2 (3,0)
|
|
Abgabeleistung kW (PS)
|
1,5 (2,0)
|
|
Bestell-Nr.
|
7524 0903
|
Scheppach © Absauganlage Woova 5
|
| |
| |
|
|
