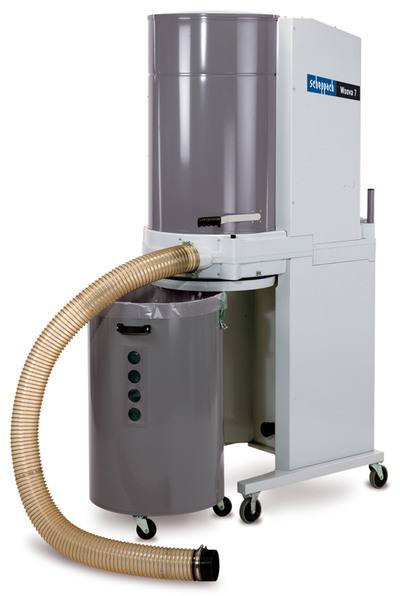

» Scheppach Mobile extractor Woova 7 H3 230-240V
|
An industrial fully enclosed fine Dust Extractor designed for the collection of the fine dust from sanding saws and planers as well as any other type of machine that has a waste outlet. The filter is intended for use with fine dust particles and is fully enclosed to keep the dust within the extractor.
Specifications
• Airflow: 565 m³/h
• Filter area: 4,1 m²
• Collection capacity: 135 litre
• Bag capacity: 135 l
• Hose diameter: 100 mm
• Hose length: 2.5 m
• Noise level 82 dB (A)
• Filtration rating
• Powerful motors (2 version available)
Additional Features
• High performance filter bag with 4,1 m² of filter area
• Dust tested to BG H3 (less than 0.1 mg of dust per m³ of air)
• Suitable for the extraction of problem related dusts such as damp dust; varnished particles; inflammable dusts from explosive dust categories (ST1)
• An integral, easy to use, cleaning mechanism
• 565 m³/h suction capacity
• 135 litres of waste capacity
• Unique design of metal housing allows comfortable and quick change of waste bag
• Highly flexible transparent hose
• Indicator for suction effectiveness
• Inspection window for waste level
• Low noise emission
• Easy to move
Order Details
Mobile Extractor Woova 7
230-240V (1.3 kW / 1.8 H.P)
Order No. 7507 0904
Scheppach © Mobile extractor Woova 7 H3
|
| |
|
Technische Daten
|
L/B/H mm
|
1178/650/1973
|
|
Luftleistung m³/h
|
565
|
|
zugehöriger Unterdruck Pa
|
2100
|
|
Filterfläche m²
|
4,1
|
|
Spänevolumen l
|
135
|
|
Schlauchlänge m
|
2,5
|
|
Schlauch Ø mm
|
100
|
|
Gewicht ca. kg
|
116
|
Motorausrüstung
| |
230-240 V/50 Hz
|
|
Aufnahmeleistung kW (PS)
|
1,3 (1,8)
|
|
Bestell-Nr.
|
7507 0904
|
Scheppach © Mobilentstauber Woova 7 H3
|
| |
| |
 |
