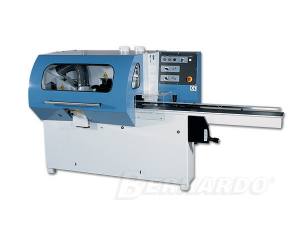

Bernardo COMPACT 18 S four side planer

COMPACT 18 S is an inexpensive and efficient four side planer for the professional worker. Compact and space saving construction in connection with solid and sophisticated technique lead to optimal working results.


Working width min./max.	23 - 180 mm
Working height min./max.	7,5 - 120 mm
Min. length of workpiece	350 mm
Length of infeed table	1700 mm
Spindle speed	6000 rpm
Spindle diam.	40 mm
Diam. of 1. cutterhead	120 mm
Diam. of cutterhead no. 2nd, 3rd and 4th min./max.	120 / 137 mm
Length of vertical spindle	130 mm
Length of horizontal spindle	190 mm
Feeding speeds	6 / 12 m/min
Feeding motor	0,8 kW / 1,1 kW (1,1 / 1,5 HP)
Motor of horizontal spindles	7,5 kW (10,0 HP)
Motor of vertical spindles	7,5 kW (10,0 HP)
Weight approx.	930 kg

• Electrical equipment 400 V / 50 Hz
• Very solid machine body with a low vibration construction
• Including 4 pcs. of cutterblock in the standard accessories
• Long infeed table for safe application of the work pieces
• Optimal balance of price and efficiency
• Digital readout for width and height adjustment serially
