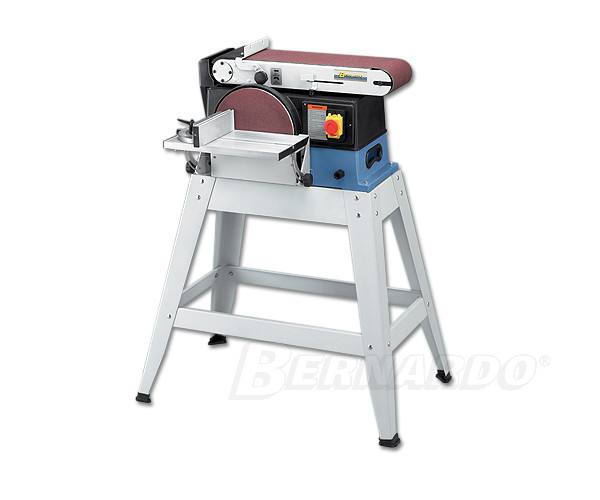

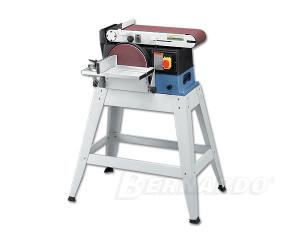

Bernardo BDSM 250 Belt and disc sander

The belt- and disc sanding machine of the BDSM-serie is universally useable for chamfering, surface- and contour grinding. For the model marker and do-it-yourselfer this machine is the ideal solution for sanding of molds and material of all kinds.

Sanding belt	1220 x 150 mm
Belt sanding table	390 x 150 mm
Belt sanding table tiltable	0° - 90°
Sanding disc diam.	250 mm
Sanding disc table	204 x 362 mm
Sanding disc table tiltable	0° - 45°
Dust extractor outlet	60 mm
Motor power	0,80 kW (1,1 HP) / 230 V
Weight approx.	47 kg

• Electrical equipment 230 V / 50 Hz
• Solid, torsion-free machine body
• Tiltable working table from 0° to 45°
• Serially with sanding disc and sanding belt
• Sanding belt useable horizontal and vertical
• Serially with stand
• Mitre fence equipped in the standard accessories
