» » » Bernardo Sawing machine FOS 255 G

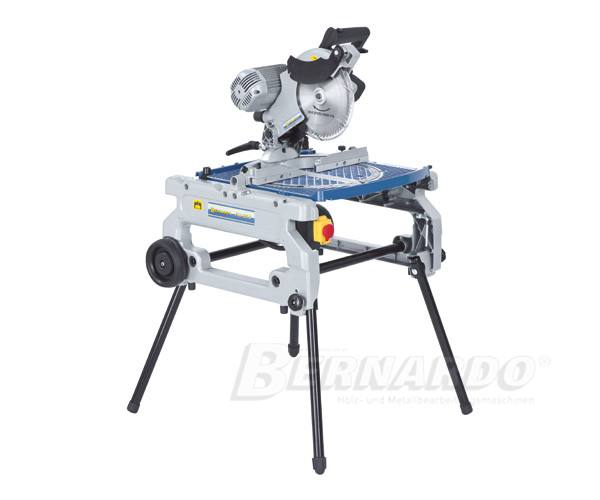

Bernardo Sawing machine FOS 255 G
Bernardo FOS 255 G; Bernardo machines
|
The FOS 255 G is the ideal equipment for processing wood, plastic profiles, coated sheets and non-ferrous metals. The powerful, maintenance-free induction motor and the short conversion time from compound to table circular saw, makes this model highly economical, precise and attractive for every user.
Sawblade diameter x bore
|
255 x 30 mm
|
No load speed
|
4200 rpm
|
Table size
|
540 x 500 mm
|
Working height at mitre saw
|
800 mm
|
Working height at table saw |
840 mm |
Mitre saw
|
|
Straight cuts at 90° / 90°
|
155 x 65 mm
|
Mitre cuts at 45° right / left
|
105 x 65 mm
|
Grade cuts at 45° left*
|
155 x 40 mm
|
Double mitre cuts at 45° left
|
105 x 40 mm
|
Table saw
|
|
Max. cutting height 90° / 45°
|
70 / 55 mm
|
Dust extraction outlet
|
38 mm
|
Motor power
|
1,8 kW (2,4 HP)
|
Voltage
|
230 V
|
Machine dimension (W x D x H)
|
740 x 810 x 1260 mm
|
Weight approx.
|
44 kg
|
* Saw unit tilted
- Perfect model to be used as cross-cut, mitre-cut and table circular saw
- Conversion from mitre to table circular saw requires no tools
- Complete with carriage and retractable machine feet to make this model easy to transport and therefore ideal for building sites and assembly works
- Robust aluminium cast construction guarantees best cutting results
- Rotary disc tilts 45º to right and left, featuring rests at 0º/ 15º/ 22.5º/ 30º/ 45º
- Locking mechanism ensures quick and easy sawblade change
- Includes sawblade (diameter 255 mm) which allows cutting depth of up to 65 mm
- Powerful, maintenance-free, smooth running induction motor
- Suitable for cutting of wood, plastics and non-ferrous metals
Standard accessories:
- Carbide sawblade 255 x 2,8 x 30 mm, 60T
- Push stick
- Rip fence
- Mitre fence
- Dust hood with riving knife
- 4 x retractable feet
- Carriage
- Tools
Optional accessories:
- Carbide sawblade WZ, 255 x 3,0 x 30 mm, 60T (Art.Nr.:17-1118)
- Set of sawblades (3 pcs.) 250 mm (Art.Nr.:17-1651)
- Digital angle finder Level Box (Art.Nr.:31-1041)
|
|
