Bernardo LBM 220 Mortiser

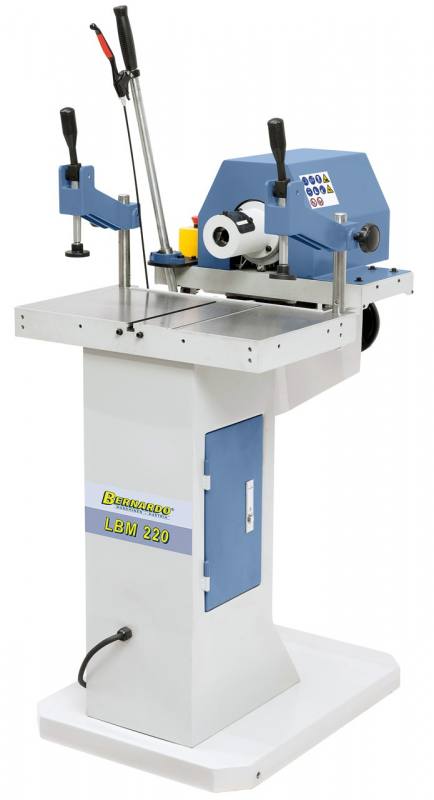

The LBM 220 mortising machine features a torsion-free steel construction and a firmly attached, surface treated, big grey cast-iron table. The optionally available table extension and enlargement allow for oversize workpieces to be processed.
TECHNISCHE SPEZIFIKATIONEN
|
Table size |
570 x 300 mm |
|
Table enlargement (optional) |
2x 600 x 260 mm |
|
Table extension (optional) |
300 x 600 mm |
|
Table height |
870 mm |
|
Max. drill depth |
155 mm |
|
Drill width |
300 mm |
|
Height adjustment |
160 mm |
|
Speed |
1400 / 2800 rpm |
|
Westcott drill chuck |
0 - 20 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
3,0 kW (4,0 HP) |
|
Motor power input S6 40% |
4,2 kW (5,7 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H)* |
570 x 850x 1340 mm |
|
Weight approx. |
140 kg |
* without optional available table extension and enlargement
FEATURES
- Equipped with 2 pcs. eccentric holder and mitre fence
- Advantage of drill unit travel: combined with the optionally available table extension, longer, oversize workpieces such as doors, can be processed effortlessly
- One hand lever allows for easy adjustment of cross support
- Westcott drill chuck 0 - 20 mm with protective cover comes standard
- Includes mortising chisel collet for accurate mortising of rectangular holes (eg. tenon joints)
- Handwheel allows for convenient height adjustment of drill unit
- Rigid steel construction eliminates vibrations
- Powerful motor ensures optimal performance
- Large grey cast-iron table features treated surface
- Equipped with 2 speed settings plus right and left turning device
- Rotor group with grid spacing 16 / 20 / 22 / 25 mm comes standard, ideal for multiple hole drilling
Standard accessories:
- 4-size rotor group with grid spacing 16 / 20 / 22 / 25 mm
- Westcott drill chuck 0 - 20 mm
- 1 pc. mortising chisel 9,50 mm
- 2 pcs. eccentric holder
- Mitre fence with guide
- Left and right turning
- 4 mortising chisel collets (19, 20, 28, 30 mm shaft)
- Machine base with tool shelf
Optional accessories:
- Table enlargement and extension (Art. no.: 10-1008)
- Mortising bit set 6 pcs. clockwise (6/8/10/12/14/16 mm), 16 mm shaft (Art. no.: 16-2000)
- Mortising bit set 6 pcs. counter clockwise (6/8/10/12/14/16 mm), 16 mm shaft (Art. no.: 16-2001)
- Mortising bit 18 mm, clockwise, 16 mm shaft (Art. no.: 16-2004)
- Mortising bit 20 mm, clockwise, 16 mm shaft (Art. no.: 16-2005)
- Mortising bit 22 mm, clockwise, 16 mm shaft (Art. no.: 16-2006)
- Mortising chisel 6,35 mm, 19 mm shaft (Art. no.: 14-1000)
- Mortising chisel 8,00 mm, 19 mm shaft (Art. no.: 14-1001)
- Mortising chisel 9,50 mm, 19 mm shaft (Art. no.: 14-1002)
- Mortising chisel 12,70 mm, 19 mm shaft (Art. no.: 14-1003)
- Mortising chisel 15,87 mm, 19 mm shaft (Art. no.: 14-1004)
- Dust collector DC 300 / 400 V (Art. no.: 12-2045)
- PVC-tube diam. 100 mm (4 m) (Art. no.: 12-1069)
- Tube diam. 100 mm (6 m) (Art. no.: 12-1077)
- Automatic start-up system ALV 10 (Art. no.: 12-1150)
