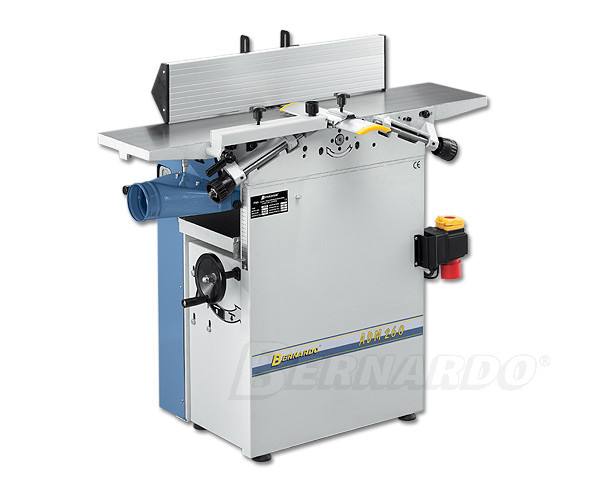

Bernardo ADM 260 230 V planer and thicknessing machine

The small but powerful surface planer and thicknesser is the perfect solution for the beginner due to the unbeatable balance of price to efficiency.

PLANER
Planing width	250 mm
Length of tables	1080 mm
Table height	820 mm
Shaft rotation speed	3750 rpm
Cutters	3 pcs.
Planer shaft diam.	75 mm
Planer fence	700 x 145 mm
Fence tiltable	90°- 45°
Max. cutting depth	5 mm
Motor power	1,1 kW (1,5 HP) / 400 V
THICKNESSER
Working table	600 mm
Working width	250 mm
Max. working thickness	190 mm
Max. planing thickness	1,8 mm
Feed speed	8 m/min.
Weight approx.	148 kg
Space needed	1080 x 450 mm

• Automatic motor brake
• Planing tables with anti-tipping safety system
• Integrated overturning shaving hood - thread diam. 100 mm
• Toothed table lips for noise reduction
• Precision 3-knife cutterblock with HSS knives
• Thicknesser table with center column and additional support
• Rigid planer fence tiltable from 90° to 45°
• Cast iron tables with polished surface
• Basic safety protection
• Cutterblock protection
