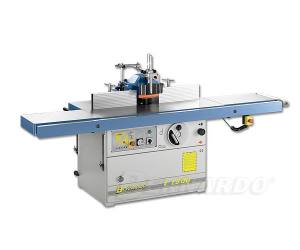

Bernardo T 1300 E spindle moulder with tilting spindle

During development of this machines a lot of effort was put on security and easy operation to ensure best working conditions and optimal operating comfort. The strong cast iron steel construction ensures permanent high performance and precision.

Table size with extension	2500 x 850 mm
Working height	860 mm
Spindle diam.	30 mm
Tilting spindle (Model TS)	-5° to +45°
Height adjustment of spindle	170 mm
Spindle working length	150 mm
Max. tool diameter	330 mm
Max. tool diameter concealed	210 mm
Table opening	235 mm
Spindle speed	3000/4000/6000/8000/10000 rpm
Motor power	5,5 kW (7,5 HP)
Weight approx.	550 kg

•     Electrical equipment 400 V / 50
• Serially equipped with left-right turning
• Large speed range (5 steps) from 3000 - 10000 rpm
• Buckling resistant cast iron table for highest precision
• Moulding fence with centralised locking and both-sided fine adjustable fences
• Hand wheel with digital indicator for spindle tilting
• Mitre fence with eccentric holder
• Electrical speed indication via LED
• Serially with changing spindle ISO 40
• Large cast iron aggregate
• Dynamic balanced spindle for precise run
• Chip discharge trough the moulding fence and dust extraction under the table
• Including table extension and extractable support



Further optional equipment:

• integral safety guides 500 mm
• spindle speeds 1500 / 3500 / 5500 / 7500 / 9000 rpm (only in connection with machine)
• collet chuck device (6, 8, 9, 12 mm)
• interchangable spindle 30 mm
• spindle 40 mm (not according to CE-regulations)
• spindle 50 mm (not according to CE-regulations)
• power feeder, various types
