Woodturning lathe dms 900
scheppach dms 900 heavy duty lathes with unique clockwise and anti-clockwise rotation.

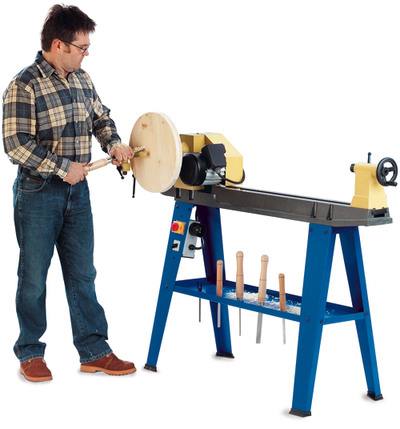

The scheppach dms 900 woodturning lathe is designed with the committed artisan in mind as well as the professional who requires a machine with an excellent specification at a competitive price. Built of cast iron the dms series lathes are made to last. Powered by a very quiet running, high torque induction motor, it gives ten speeds ranging from 500 rpm 2,100 rpm and is therefore ideal for small diameter spindle work through to large bowl turning.
Both the headstock, tailstock and lathe bed are made from solid cast iron which has been accurate-ly machined to allow for smooth movement and
minimal levels of vibration. The pivoting headstock turns 180° and locks to facilitate outboard turning.
Unique to the scheppach dms series is the clockwise and anticlockwise spindle rotation which offers the advantage of positioning the tool rest to the left or right when swiveling the headstock.
The scheppach dms 900 will give satisfaction from the day of purchase and long into the future.
Technical data
L/W/H mm
|
1,510/490/1,120
|
Bed height mm
|
890
|
Distance between
centres mm
|
825
|
Height of centres over bed mm
|
152
|
Spindle speeds rpm
|
500/600/750/900/1,000/
1,200/1,400/2,600/1,800/2,100
|
Turning Ø over
bed mm
|
304
|
Tool rest length mm
|
300
|
Face plate Ø mm
|
150
|
Weight approx. kg
|
80
|
Motor
|
230-240V/50 Hz
|
Input kW (HP)
|
0.55 (0.75)
|
Output kW (HP)
|
0.34 (0.46)
|
Rpm
|
1,400
|
Order No.
|
8800 1924
|
