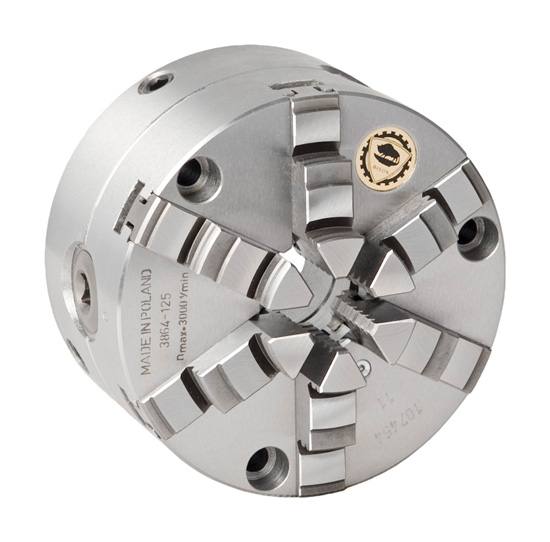

Bison 6-jaw Self-Center. Chuck with Fine Adjustment 3864-1000



Lathe Chucks - Self-Centering Chucks with Fine Adjustment - 6-Jaw

  • Precision chuck
  • Hard solid jaws
  • Steel body
  • Steel body material provides higher rigidity and wear resistance, enabling the chuck to withstand higher machining forces
  • Hardened and ground working surfaces prolong life while ensuring continuous accuracy and repeatability
  • Balanced scroll plate allows higher rotation speeds without excess vibration
  • Repeatability: 0,015 mm
  • Superior accuracy: small screws on the outside enable the chuck to be adjusted to position with nearly zero run-out (adjusting accuracy within 0,005 mm)
  • The clamped workpiece is adjusted to the required concentricity by means of 4 (8 for sizes 400 mm, 500 mm, 630 mm) radially arranged adjusting screws
  • This precision chuck, with increased gripping accuracy, is made for universal use, but particularly advantageous for grinding machines, indexing heads and lathes
  • Mounted on the machine tool spindle from the back of the chuck by using an adapter plate
Standard equipment:
Hard Outside Solid Jaws   Hard Inside Solid Jaws   Safety Wrench
  Hard Top Jaws   Hard Master Jaws
